Transmodel diagram

NT FO Stop Place HIERARCHY [INFO]

In package FO Stop Place MODELView on transmodel-cen.eu

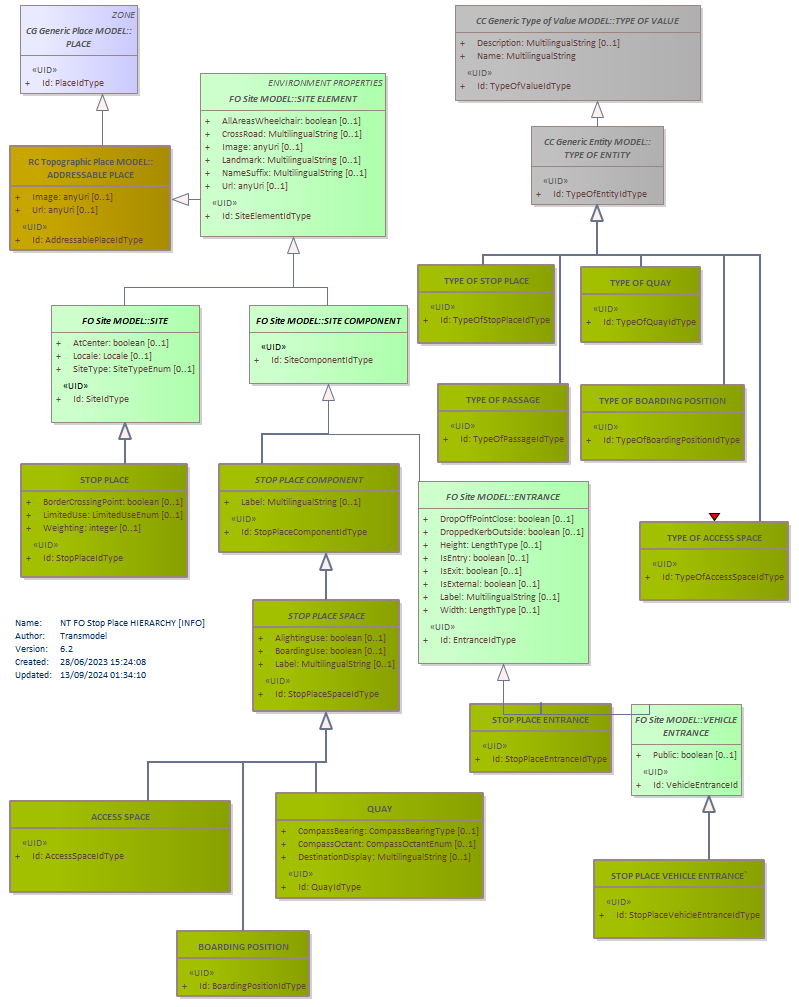

Diagram NT FO Stop Place HIERARCHY [INFO] TYPE OF ACCESS SPACETYPE OF ENTITYTYPE OF VALUEPLACEADDRESSABLE PLACESITE COMPONENTTYPE OF QUAYTYPE OF BOARDING POSITIONVEHICLE ENTRANCESTOP PLACE VEHICLE ENTRANCE`TYPE OF PASSAGETYPE OF STOP PLACEQUAYSTOP PLACE ENTRANCEACCESS SPACESTOP PLACESITE ELEMENTBOARDING POSITIONENTRANCESTOP PLACE SPACESITESTOP PLACE COMPONENT

Classes on this diagram

ACCESS SPACE
ADDRESSABLE PLACE
BOARDING POSITION
ENTRANCE abstract
PLACE abstract
QUAY
SITE abstract
SITE COMPONENT abstract
SITE ELEMENT abstract
STOP PLACE
STOP PLACE COMPONENT abstract
STOP PLACE ENTRANCE
STOP PLACE SPACE abstract
STOP PLACE VEHICLE ENTRANCE`
TYPE OF ACCESS SPACE
TYPE OF BOARDING POSITION
TYPE OF ENTITY abstract
TYPE OF PASSAGE
TYPE OF QUAY
TYPE OF STOP PLACE
TYPE OF VALUE abstract
VEHICLE ENTRANCE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
