Transmodel diagram

NT FO Stop Place MODEL

In package FO Stop Place MODELView on transmodel-cen.eu

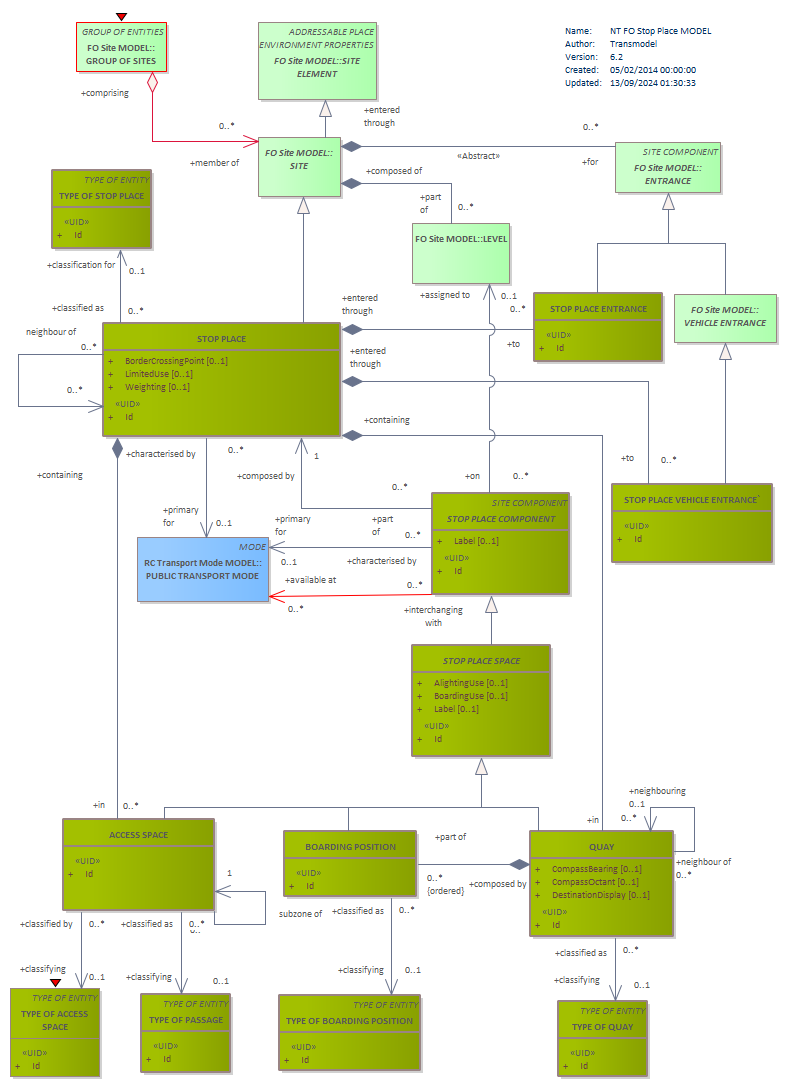

Diagram NT FO Stop Place MODEL TYPE OF ACCESS SPACEGROUP OF SITESTYPE OF QUAYTYPE OF BOARDING POSITIONPUBLIC TRANSPORT MODEVEHICLE ENTRANCESTOP PLACE VEHICLE ENTRANCE`TYPE OF PASSAGETYPE OF STOP PLACEQUAYSTOP PLACE ENTRANCEACCESS SPACESTOP PLACESITE ELEMENTBOARDING POSITIONENTRANCELEVELSTOP PLACE SPACESITESTOP PLACE COMPONENT

Classes on this diagram

ACCESS SPACE
BOARDING POSITION
ENTRANCE abstract
GROUP OF SITES
LEVEL
PUBLIC TRANSPORT MODE
QUAY
SITE abstract
SITE ELEMENT abstract
STOP PLACE
STOP PLACE COMPONENT abstract
STOP PLACE ENTRANCE
STOP PLACE SPACE abstract
STOP PLACE VEHICLE ENTRANCE`
TYPE OF ACCESS SPACE
TYPE OF BOARDING POSITION
TYPE OF PASSAGE
TYPE OF QUAY
TYPE OF STOP PLACE
VEHICLE ENTRANCE abstract
