Transmodel diagram

NT FO Waiting, Luggage Equipment MODEL

In package FO Site Equipment MODELView on transmodel-cen.eu

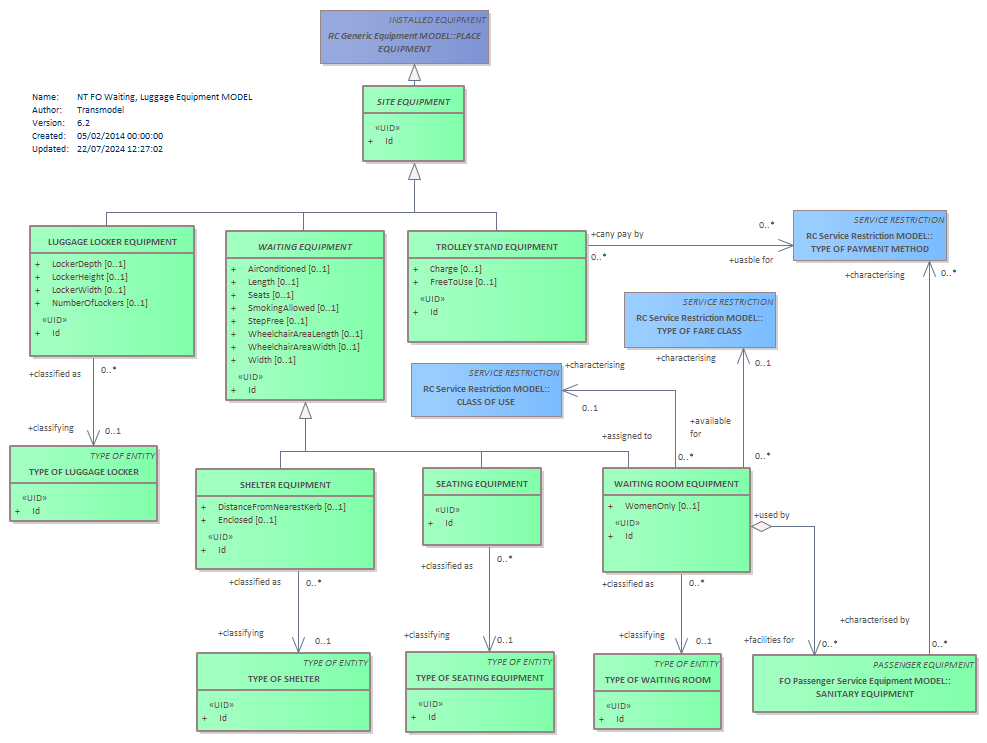

Diagram NT FO Waiting, Luggage Equipment MODEL TYPE OF PAYMENT METHODSANITARY EQUIPMENTPLACE EQUIPMENTCLASS OF USETYPE OF FARE CLASSTYPE OF SEATING EQUIPMENTSEATING EQUIPMENTTYPE OF LUGGAGE LOCKERTYPE OF WAITING ROOMTYPE OF SHELTERWAITING ROOM EQUIPMENTSHELTER EQUIPMENTSITE EQUIPMENTWAITING EQUIPMENTLUGGAGE LOCKER EQUIPMENTTROLLEY STAND EQUIPMENT

Classes on this diagram

CLASS OF USE
LUGGAGE LOCKER EQUIPMENT
PLACE EQUIPMENT abstract
SANITARY EQUIPMENT
SEATING EQUIPMENT
SHELTER EQUIPMENT
SITE EQUIPMENT abstract
TROLLEY STAND EQUIPMENT
TYPE OF FARE CLASS
TYPE OF LUGGAGE LOCKER
TYPE OF PAYMENT METHOD
TYPE OF SEATING EQUIPMENT
TYPE OF SHELTER
TYPE OF WAITING ROOM
WAITING EQUIPMENT abstract
WAITING ROOM EQUIPMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
