Transmodel diagram

NT ND Network Restriction MODEL

In package NT Network Restriction MODELView on transmodel-cen.eu

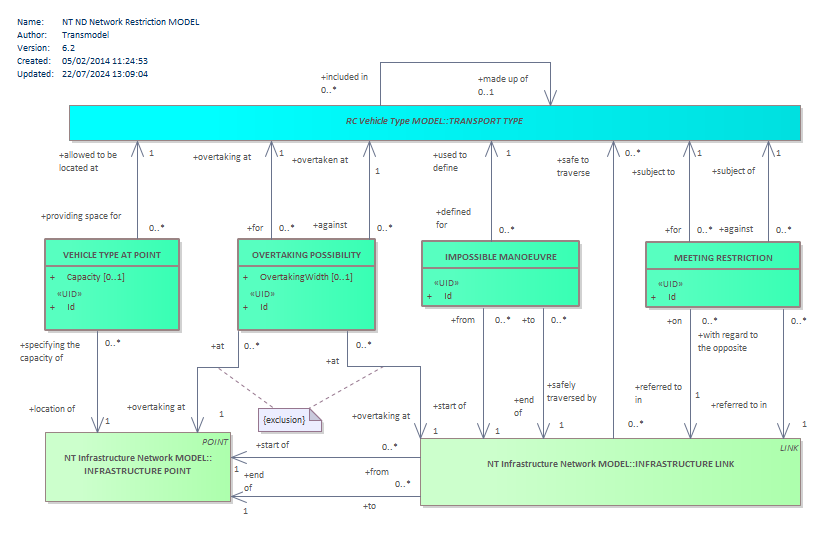

Diagram NT ND Network Restriction MODEL TRANSPORT TYPEINFRASTRUCTURE LINKINFRASTRUCTURE POINTVEHICLE TYPE AT POINTOVERTAKING POSSIBILITYMEETING RESTRICTIONIMPOSSIBLE MANOEUVRE

Classes on this diagram

IMPOSSIBLE MANOEUVRE
INFRASTRUCTURE LINK
INFRASTRUCTURE POINT
MEETING RESTRICTION
OVERTAKING POSSIBILITY
TRANSPORT TYPE abstract
VEHICLE TYPE AT POINT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
