Transmodel diagram

NT TP All Journey Patterns MODEL

In package TP Journey Pattern MODELView on transmodel-cen.eu

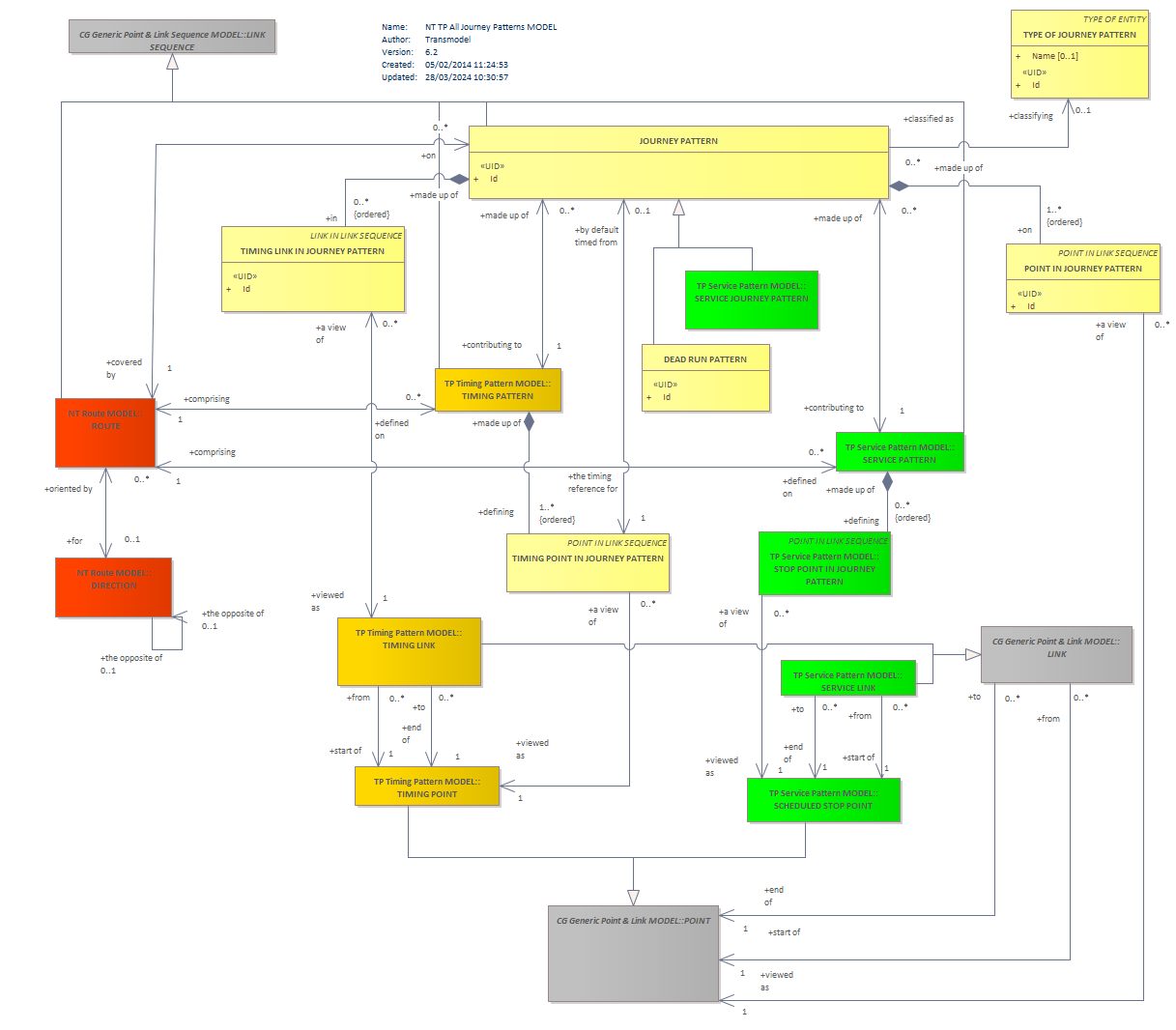

Diagram NT TP All Journey Patterns MODEL POINTLINK SEQUENCELINKDIRECTIONSERVICE JOURNEY PATTERNDEAD RUN PATTERNSCHEDULED STOP POINTSERVICE LINKSTOP POINT IN JOURNEY PATTERNSERVICE PATTERNTIMING POINTTIMING LINKPOINT IN JOURNEY PATTERNTIMING POINT IN JOURNEY PATTERNTIMING LINK IN JOURNEY PATTERNTIMING PATTERNJOURNEY PATTERNTYPE OF JOURNEY PATTERNROUTE

Classes on this diagram

DEAD RUN PATTERN
DIRECTION
JOURNEY PATTERN
LINK abstract
LINK SEQUENCE abstract
POINT abstract
POINT IN JOURNEY PATTERN
ROUTE
SCHEDULED STOP POINT
SERVICE JOURNEY PATTERN
SERVICE LINK
SERVICE PATTERN
STOP POINT IN JOURNEY PATTERN
TIMING LINK
TIMING LINK IN JOURNEY PATTERN
TIMING PATTERN
TIMING POINT
TIMING POINT IN JOURNEY PATTERN
TYPE OF JOURNEY PATTERN

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
