Transmodel diagram

NT TP Destination Display Adaptation MODEL

In package TP Journey Pattern MODELView on transmodel-cen.eu

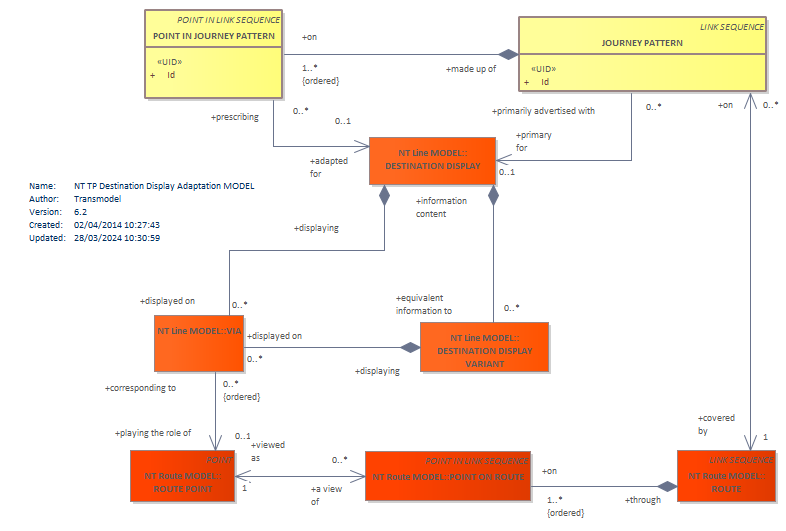

Diagram NT TP Destination Display Adaptation MODEL VIAROUTE POINTPOINT ON ROUTEROUTEPOINT IN JOURNEY PATTERNJOURNEY PATTERNDESTINATION DISPLAY VARIANTDESTINATION DISPLAY

Classes on this diagram

DESTINATION DISPLAY
DESTINATION DISPLAY VARIANT
JOURNEY PATTERN
POINT IN JOURNEY PATTERN
POINT ON ROUTE
ROUTE
ROUTE POINT
VIA

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
