Transmodel diagram

OM CA Interchange Control Action MODEL

In package OM Interchange Control Action MODELView on transmodel-cen.eu

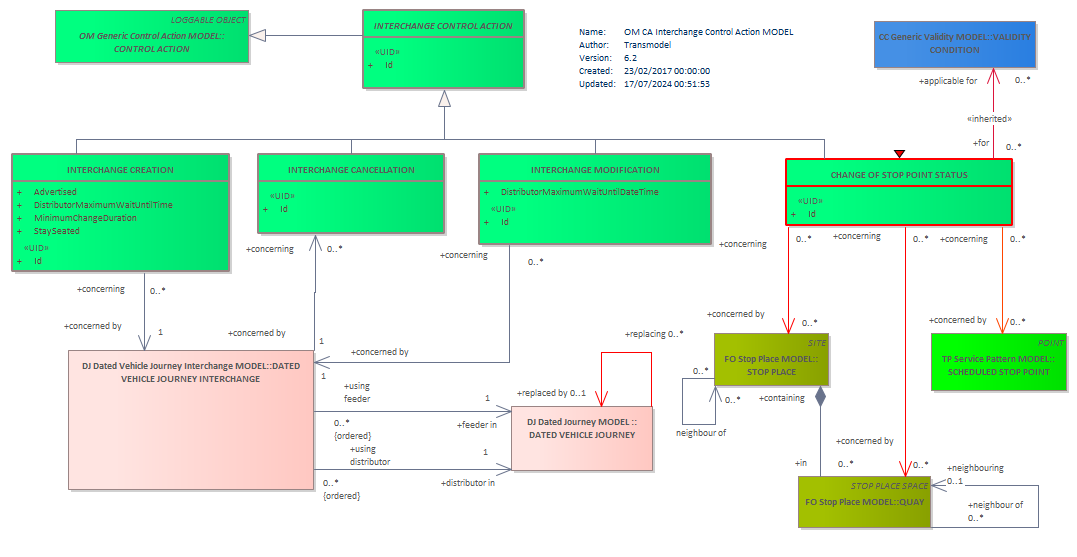

Diagram OM CA Interchange Control Action MODEL QUAYVALIDITY CONDITIONSCHEDULED STOP POINTSTOP PLACECHANGE OF STOP POINT STATUSINTERCHANGE CONTROL ACTIONDATED VEHICLE JOURNEY INTERCHANGEINTERCHANGE MODIFICATIONINTERCHANGE CANCELLATIONINTERCHANGE CREATIONDATED VEHICLE JOURNEYCONTROL ACTION

Classes on this diagram

CHANGE OF STOP POINT STATUS
CONTROL ACTION abstract
DATED VEHICLE JOURNEY
DATED VEHICLE JOURNEY INTERCHANGE
INTERCHANGE CANCELLATION
INTERCHANGE CONTROL ACTION abstract
INTERCHANGE CREATION
INTERCHANGE MODIFICATION
QUAY
SCHEDULED STOP POINT
STOP PLACE
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
