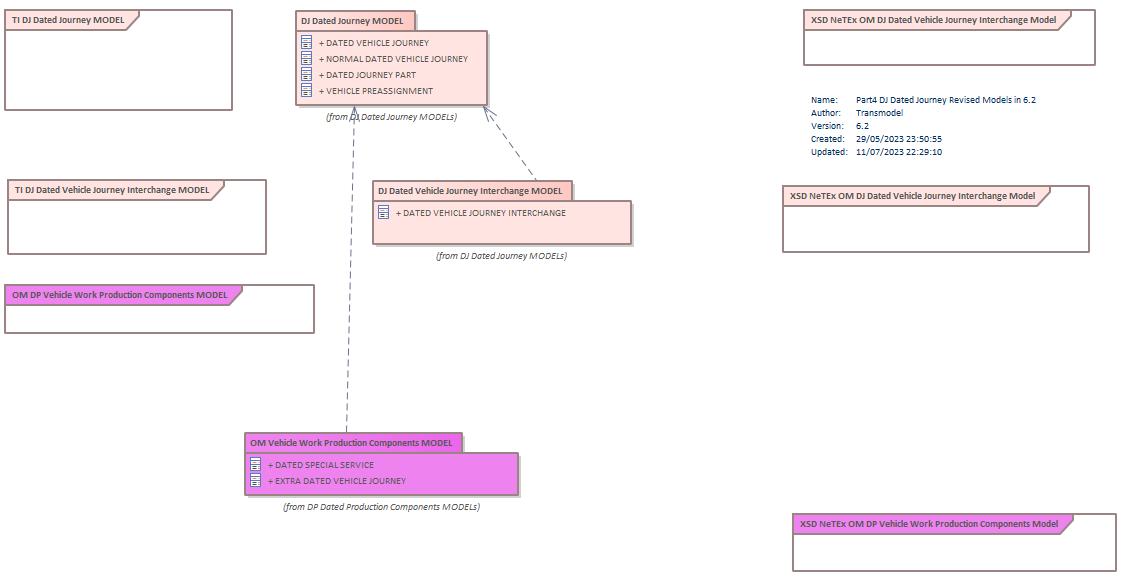

Transmodel diagram

Part4 DJ Dated Journey Revised Models in 6.2

In package DJ Dated Journey Revised Models in 6.2View on transmodel-cen.eu

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
