Transmodel diagram

PI QR Exchange Points Request MODEL

In package QR Exchange Points Query MODELView on transmodel-cen.eu

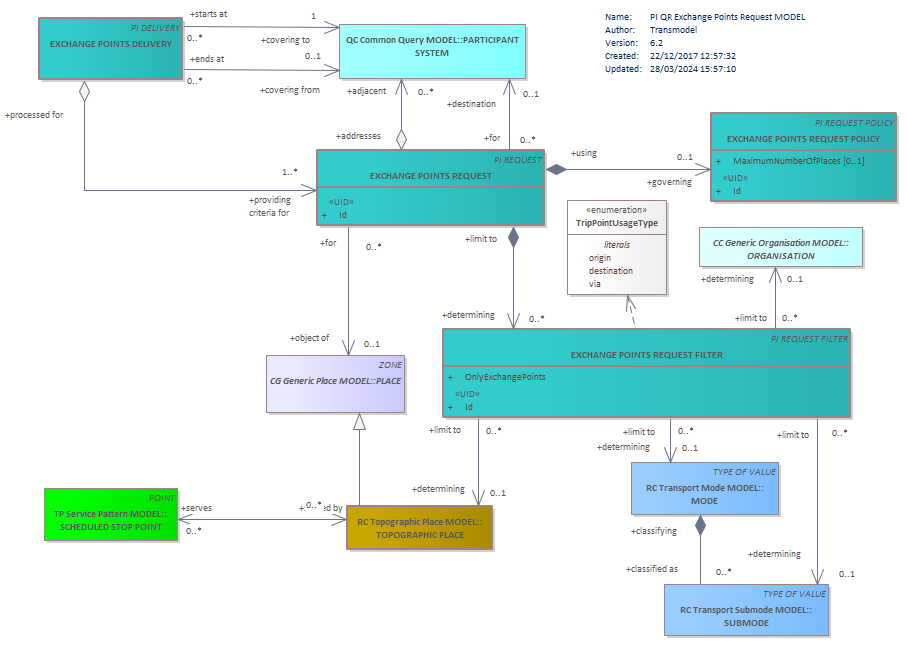

Diagram PI QR Exchange Points Request MODEL TripPointUsageTypeTOPOGRAPHIC PLACEORGANISATIONPARTICIPANT SYSTEMPLACEEXCHANGE POINTS REQUESTEXCHANGE POINTS DELIVERYEXCHANGE POINTS REQUEST FILTEREXCHANGE POINTS REQUEST POLICYSUBMODEMODESCHEDULED STOP POINT

Classes on this diagram

EXCHANGE POINTS DELIVERY
EXCHANGE POINTS REQUEST
EXCHANGE POINTS REQUEST FILTER
EXCHANGE POINTS REQUEST POLICY
MODE
ORGANISATION abstract
PARTICIPANT SYSTEM
PLACE abstract
SCHEDULED STOP POINT
SUBMODE
TOPOGRAPHIC PLACE
TripPointUsageType

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
