Transmodel diagram

PI QR Trip Query HIERARCHY [INFO]

In package QR Trip Query MODELView on transmodel-cen.eu

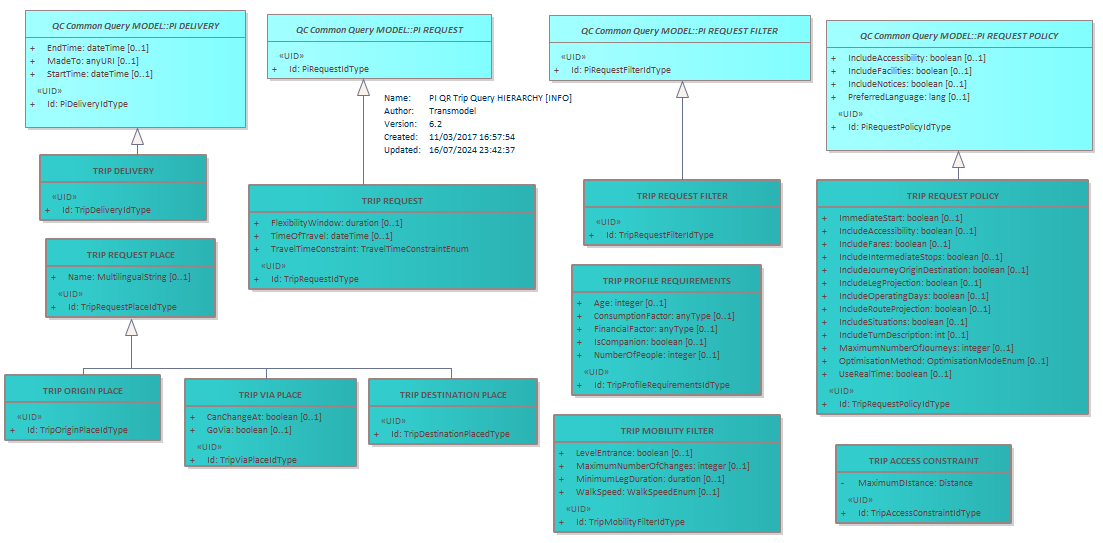

Diagram PI QR Trip Query HIERARCHY [INFO] TRIP PROFILE REQUIREMENTSPI REQUEST FILTERTRIP DESTINATION PLACETRIP ORIGIN PLACETRIP REQUESTTRIP DELIVERYTRIP REQUEST FILTERTRIP MOBILITY FILTERTRIP ACCESS CONSTRAINTTRIP VIA PLACETRIP REQUEST PLACETRIP REQUEST POLICYPI DELIVERYPI REQUESTPI REQUEST POLICY

Classes on this diagram

PI DELIVERY abstract
PI REQUEST abstract
PI REQUEST FILTER abstract
PI REQUEST POLICY abstract
TRIP ACCESS CONSTRAINT
TRIP DELIVERY
TRIP DESTINATION PLACE
TRIP MOBILITY FILTER
TRIP ORIGIN PLACE
TRIP PROFILE REQUIREMENTS
TRIP REQUEST
TRIP REQUEST FILTER
TRIP REQUEST PLACE
TRIP REQUEST POLICY
TRIP VIA PLACE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
