Transmodel diagram

PI TD Connection Leg MODEL Basic [INFO]

In package TD Passenger Trip Connection MODELView on transmodel-cen.eu

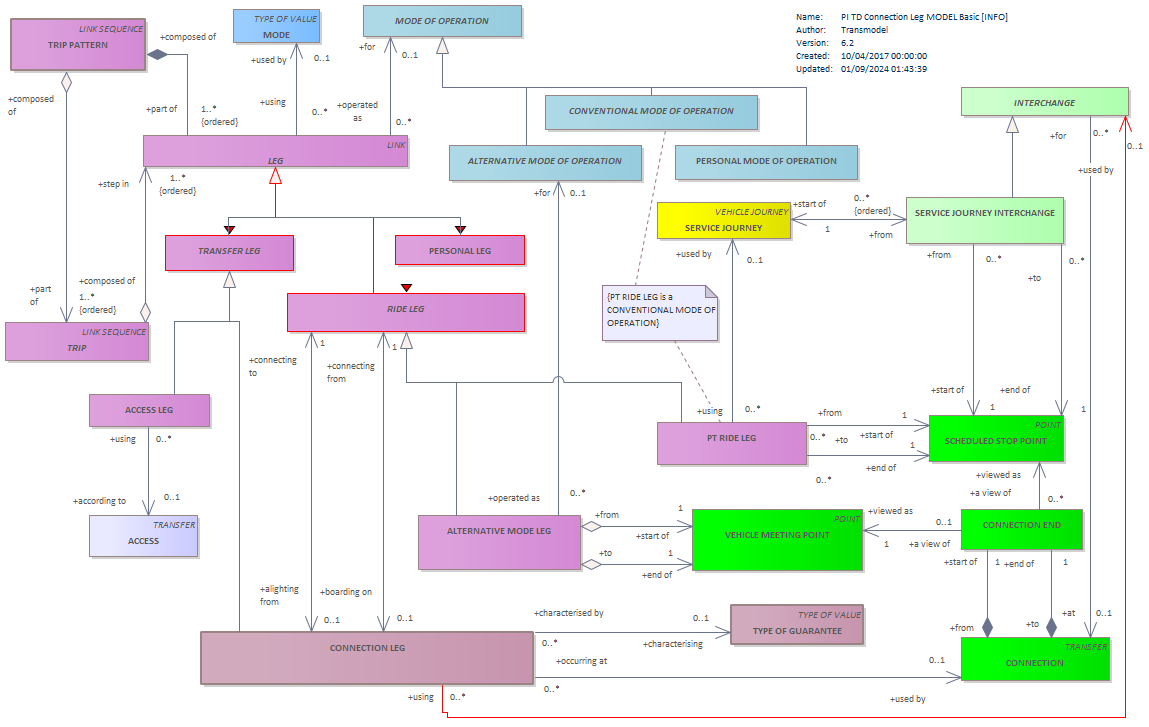

Diagram PI TD Connection Leg MODEL Basic [INFO] INTERCHANGEPERSONAL LEGCONVENTIONAL MODE OF OPERATIONPERSONAL MODE OF OPERATIONALTERNATIVE MODE OF OPERATIONTYPE OF GUARANTEETRANSFER LEGACCESSACCESS LEGMODE OF OPERATIONMODEVEHICLE MEETING POINTALTERNATIVE MODE LEGRIDE LEGLEGCONNECTION ENDCONNECTIONSCHEDULED STOP POINTSERVICE JOURNEY INTERCHANGESERVICE JOURNEYCONNECTION LEGTRIPPT RIDE LEGTRIP PATTERN

Classes on this diagram

ACCESS
ACCESS LEG
ALTERNATIVE MODE LEG
ALTERNATIVE MODE OF OPERATION abstract
CONNECTION
CONNECTION END
CONNECTION LEG
CONVENTIONAL MODE OF OPERATION abstract
INTERCHANGE abstract
LEG abstract
MODE
MODE OF OPERATION abstract
PERSONAL LEG
PERSONAL MODE OF OPERATION
PT RIDE LEG
RIDE LEG abstract
SCHEDULED STOP POINT
SERVICE JOURNEY
SERVICE JOURNEY INTERCHANGE
TRANSFER LEG abstract
TRIP abstract
TRIP PATTERN
TYPE OF GUARANTEE
VEHICLE MEETING POINT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
