Transmodel diagram

PI TD Trip Duration HIERARCHY [INFO]

In package TD Trip Duration MODELView on transmodel-cen.eu

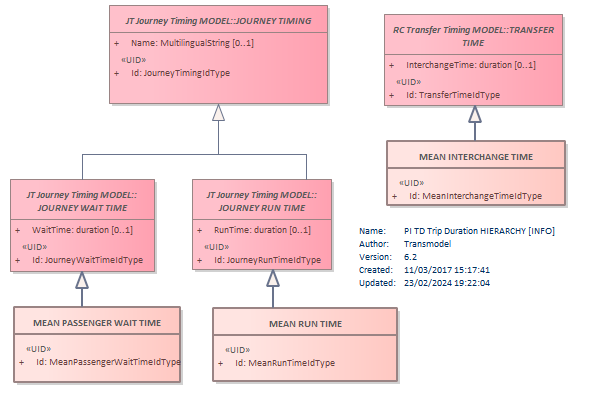

Diagram PI TD Trip Duration HIERARCHY [INFO] TRANSFER TIMEMEAN INTERCHANGE TIMEJOURNEY RUN TIMEJOURNEY TIMINGJOURNEY WAIT TIMEMEAN PASSENGER WAIT TIMEMEAN RUN TIME

Classes on this diagram

JOURNEY RUN TIME abstract
JOURNEY TIMING abstract
JOURNEY WAIT TIME abstract
MEAN INTERCHANGE TIME
MEAN PASSENGER WAIT TIME
MEAN RUN TIME
TRANSFER TIME abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
