Transmodel diagram

PI TD Trip Duration Interchange MODEL

In package TD Trip Duration MODELView on transmodel-cen.eu

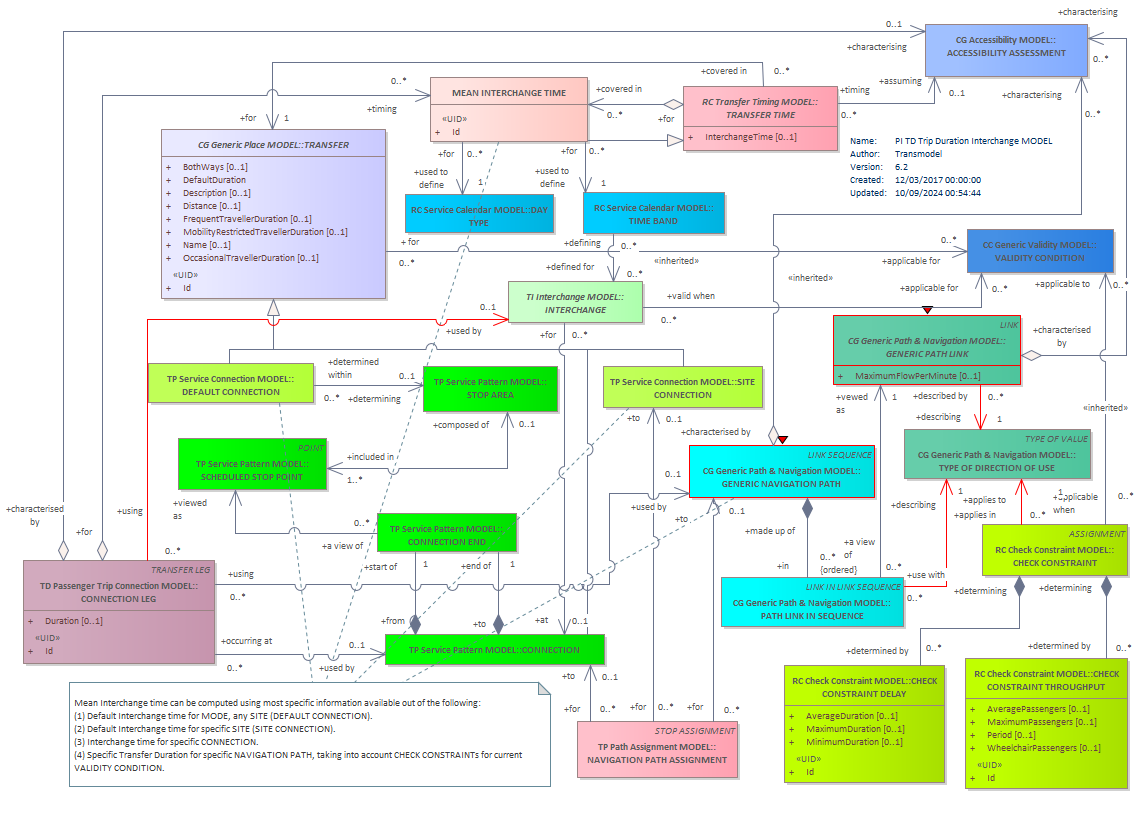

Diagram PI TD Trip Duration Interchange MODEL TYPE OF DIRECTION OF USETRANSFER TIMEACCESSIBILITY ASSESSMENTSITE CONNECTIONVALIDITY CONDITIONMEAN INTERCHANGE TIMEINTERCHANGENAVIGATION PATH ASSIGNMENTTRANSFERGENERIC NAVIGATION PATHCONNECTION ENDCONNECTIONPATH LINK IN SEQUENCECHECK CONSTRAINT THROUGHPUTGENERIC PATH LINKCHECK CONSTRAINT DELAYCHECK CONSTRAINTCONNECTION LEGDAY TYPETIME BANDSCHEDULED STOP POINTSTOP AREADEFAULT CONNECTION

Classes on this diagram

ACCESSIBILITY ASSESSMENT
CHECK CONSTRAINT
CHECK CONSTRAINT DELAY
CHECK CONSTRAINT THROUGHPUT
CONNECTION
CONNECTION END
CONNECTION LEG
DAY TYPE
DEFAULT CONNECTION
GENERIC NAVIGATION PATH
GENERIC PATH LINK abstract
INTERCHANGE abstract
MEAN INTERCHANGE TIME
NAVIGATION PATH ASSIGNMENT
PATH LINK IN SEQUENCE
SCHEDULED STOP POINT
SITE CONNECTION
STOP AREA
TIME BAND
TRANSFER abstract
TRANSFER TIME abstract
TYPE OF DIRECTION OF USE
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
