Transmodel diagram

RC EQ Generic Equipment MODEL

In package RC Generic Equipment MODELView on transmodel-cen.eu

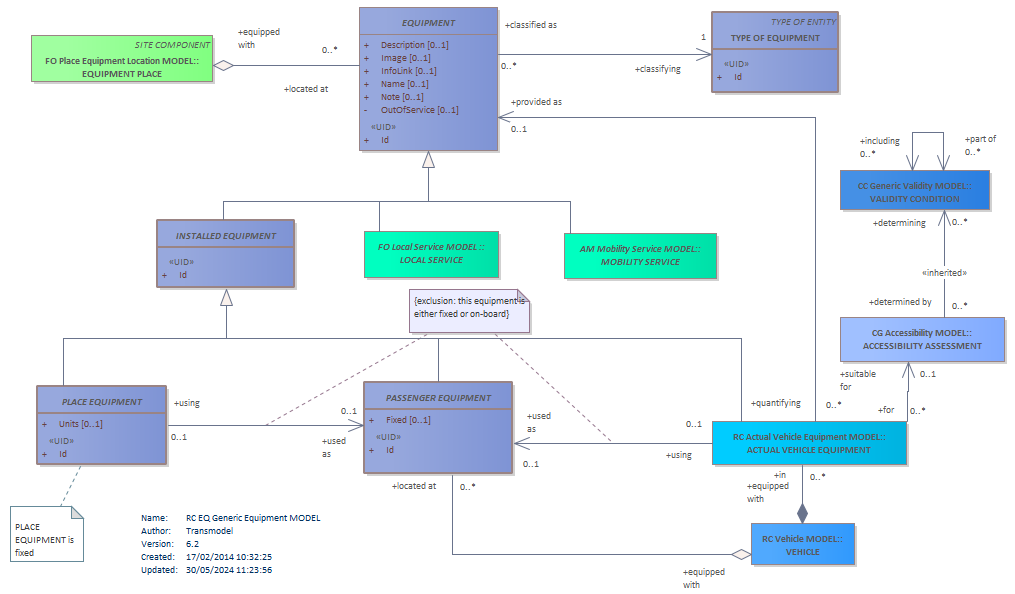

Diagram RC EQ Generic Equipment MODEL EQUIPMENT PLACEMOBILITY SERVICEVALIDITY CONDITIONACCESSIBILITY ASSESSMENTVEHICLEPASSENGER EQUIPMENTACTUAL VEHICLE EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTLOCAL SERVICEEQUIPMENTPLACE EQUIPMENT

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
EQUIPMENT abstract
EQUIPMENT PLACE
INSTALLED EQUIPMENT abstract
LOCAL SERVICE abstract
MOBILITY SERVICE abstract
PASSENGER EQUIPMENT abstract
PLACE EQUIPMENT abstract
TYPE OF EQUIPMENT
VALIDITY CONDITION
VEHICLE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
