Transmodel diagram

RC EQ Vehicle Equipment HIERARCHY [INFO]

In package RC Generic Equipment MODELView on transmodel-cen.eu

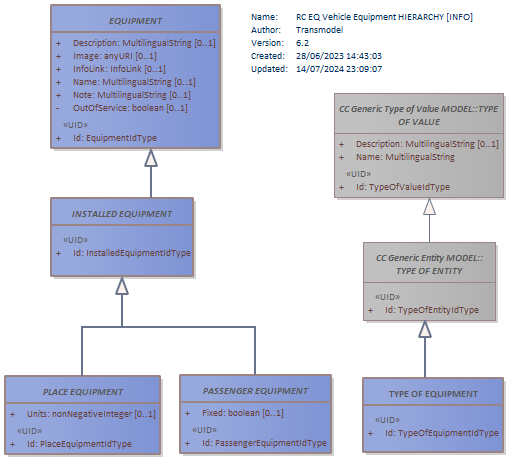

Diagram RC EQ Vehicle Equipment HIERARCHY [INFO] TYPE OF VALUETYPE OF ENTITYPASSENGER EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTPLACE EQUIPMENT

Classes on this diagram

EQUIPMENT abstract
INSTALLED EQUIPMENT abstract
PASSENGER EQUIPMENT abstract
PLACE EQUIPMENT abstract
TYPE OF ENTITY abstract
TYPE OF EQUIPMENT
TYPE OF VALUE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
