Transmodel diagram

RC EQ Vehicle Equipment MODEL

In package RC Generic Equipment MODELView on transmodel-cen.eu

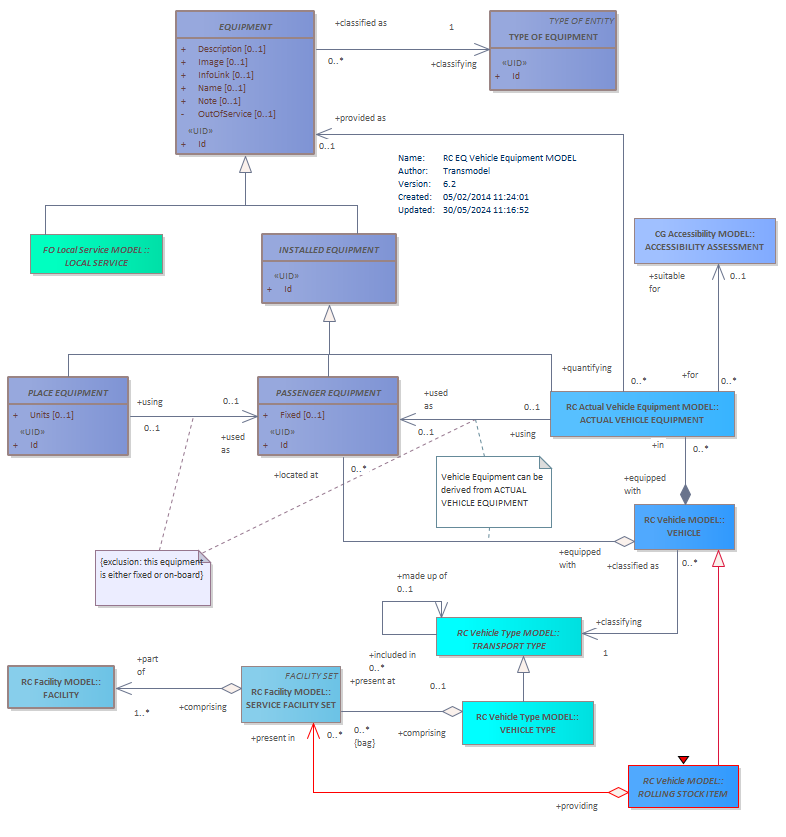

Diagram RC EQ Vehicle Equipment MODEL ROLLING STOCK ITEMVEHICLE TYPEACCESSIBILITY ASSESSMENTSERVICE FACILITY SETFACILITYTRANSPORT TYPEPASSENGER EQUIPMENTVEHICLEACTUAL VEHICLE EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTLOCAL SERVICEEQUIPMENTPLACE EQUIPMENT

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
EQUIPMENT abstract
FACILITY
INSTALLED EQUIPMENT abstract
LOCAL SERVICE abstract
PASSENGER EQUIPMENT abstract
PLACE EQUIPMENT abstract
ROLLING STOCK ITEM abstract
SERVICE FACILITY SET
TRANSPORT TYPE abstract
TYPE OF EQUIPMENT
VEHICLE
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
