Transmodel diagram

RC EQ Vehicle Passenger Equipment HIERARCHY [INFO]

In package RC Vehicle Passenger Equipment MODELView on transmodel-cen.eu

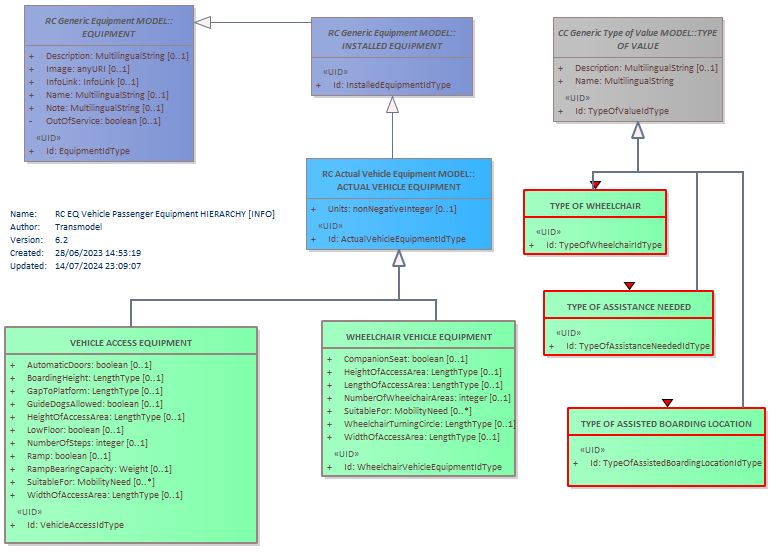

Diagram RC EQ Vehicle Passenger Equipment HIERARCHY [INFO] TYPE OF ASSISTED BOARDING LOCATIONTYPE OF ASSISTANCE NEEDEDTYPE OF VALUETYPE OF WHEELCHAIRWHEELCHAIR VEHICLE EQUIPMENTVEHICLE ACCESS EQUIPMENTACTUAL VEHICLE EQUIPMENTINSTALLED EQUIPMENTEQUIPMENT

Classes on this diagram

ACTUAL VEHICLE EQUIPMENT
EQUIPMENT abstract
INSTALLED EQUIPMENT abstract
TYPE OF ASSISTANCE NEEDED
TYPE OF ASSISTED BOARDING LOCATION
TYPE OF VALUE abstract
TYPE OF WHEELCHAIR
VEHICLE ACCESS EQUIPMENT
WHEELCHAIR VEHICLE EQUIPMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
