RC EQ Vehicle Passenger Equipment MODEL

In package RC Vehicle Passenger Equipment MODELView on transmodel-cen.eu

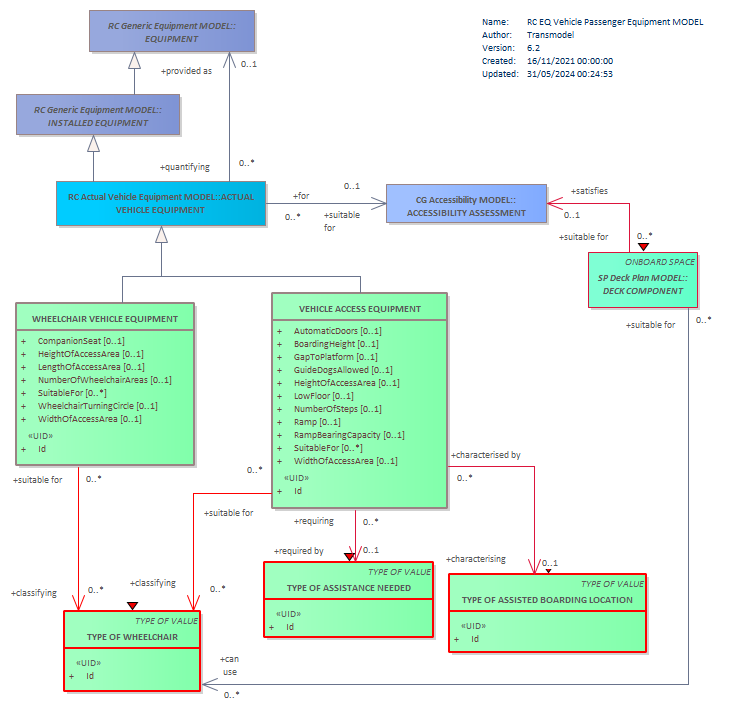

Diagram RC EQ Vehicle Passenger Equipment MODEL TYPE OF ASSISTED BOARDING LOCATIONTYPE OF ASSISTANCE NEEDEDDECK COMPONENTTYPE OF WHEELCHAIRACCESSIBILITY ASSESSMENTINSTALLED EQUIPMENTACTUAL VEHICLE EQUIPMENTWHEELCHAIR VEHICLE EQUIPMENTVEHICLE ACCESS EQUIPMENTEQUIPMENT

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
DECK COMPONENT abstract
EQUIPMENT abstract
INSTALLED EQUIPMENT abstract
TYPE OF ASSISTANCE NEEDED
TYPE OF ASSISTED BOARDING LOCATION
TYPE OF WHEELCHAIR
VEHICLE ACCESS EQUIPMENT
WHEELCHAIR VEHICLE EQUIPMENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
