Transmodel diagram

RC MD Access Mode Use VIEW [INFO]

In package RC Transport Mode MODELView on transmodel-cen.eu

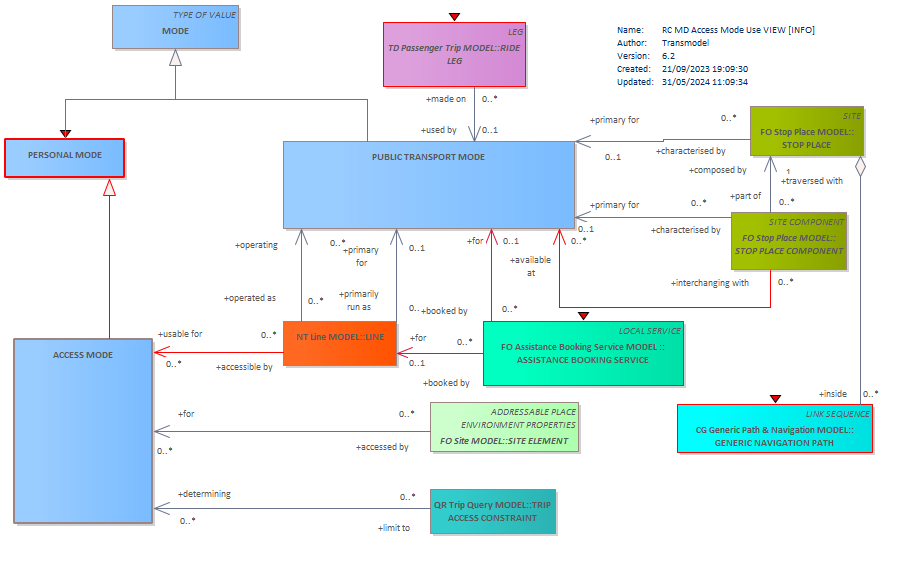

Diagram RC MD Access Mode Use VIEW [INFO] RIDE LEGASSISTANCE BOOKING SERVICELINEPERSONAL MODETRIP ACCESS CONSTRAINTSTOP PLACE COMPONENTSTOP PLACEGENERIC NAVIGATION PATHSITE ELEMENTPUBLIC TRANSPORT MODEACCESS MODEMODE

Classes on this diagram

ACCESS MODE
ASSISTANCE BOOKING SERVICE
GENERIC NAVIGATION PATH
LINE
MODE
PERSONAL MODE
PUBLIC TRANSPORT MODE
RIDE LEG abstract
SITE ELEMENT abstract
STOP PLACE
STOP PLACE COMPONENT abstract
TRIP ACCESS CONSTRAINT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
