Transmodel diagram

RC MD Transport Mode MODEL

In package RC Transport Mode MODELView on transmodel-cen.eu

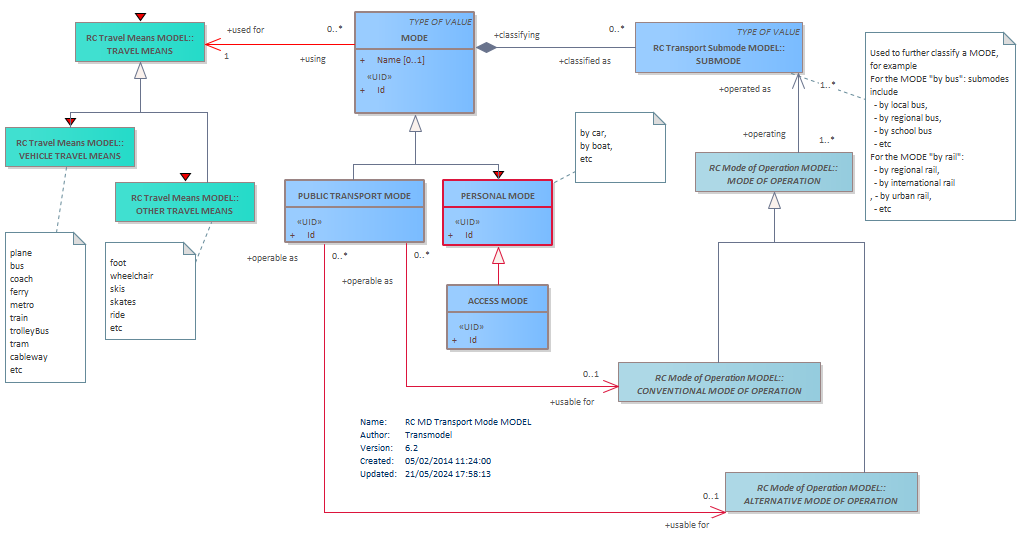

Diagram RC MD Transport Mode MODEL ALTERNATIVE MODE OF OPERATIONMODE OF OPERATIONCONVENTIONAL MODE OF OPERATIONVEHICLE TRAVEL MEANSOTHER TRAVEL MEANSTRAVEL MEANSSUBMODEPERSONAL MODEPUBLIC TRANSPORT MODEACCESS MODEMODE

Classes on this diagram

ACCESS MODE
ALTERNATIVE MODE OF OPERATION abstract
CONVENTIONAL MODE OF OPERATION abstract
MODE
MODE OF OPERATION abstract
OTHER TRAVEL MEANS
PERSONAL MODE
PUBLIC TRANSPORT MODE
SUBMODE
TRAVEL MEANS
VEHICLE TRAVEL MEANS

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
