Transmodel diagram

RC MS Notice Assignment MODEL

In package RC Notice Assignment MODELView on transmodel-cen.eu

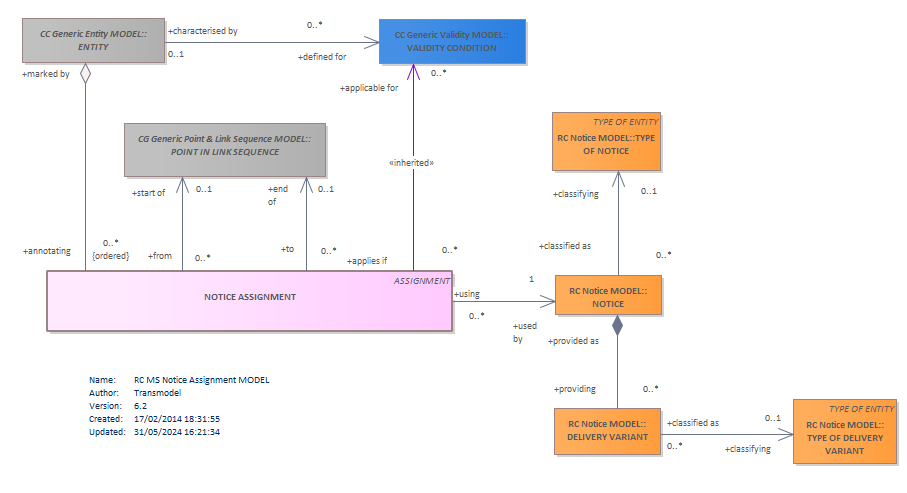

Diagram RC MS Notice Assignment MODEL ENTITYPOINT IN LINK SEQUENCETYPE OF DELIVERY VARIANTDELIVERY VARIANTTYPE OF NOTICENOTICEVALIDITY CONDITIONNOTICE ASSIGNMENT

Classes on this diagram

DELIVERY VARIANT
ENTITY abstract
NOTICE
NOTICE ASSIGNMENT
POINT IN LINK SEQUENCE abstract
TYPE OF DELIVERY VARIANT
TYPE OF NOTICE
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
