Transmodel diagram

RC MS Notice Assignment Use -Part 5 VIEW [INFO]

In package RC Notice Assignment MODELView on transmodel-cen.eu

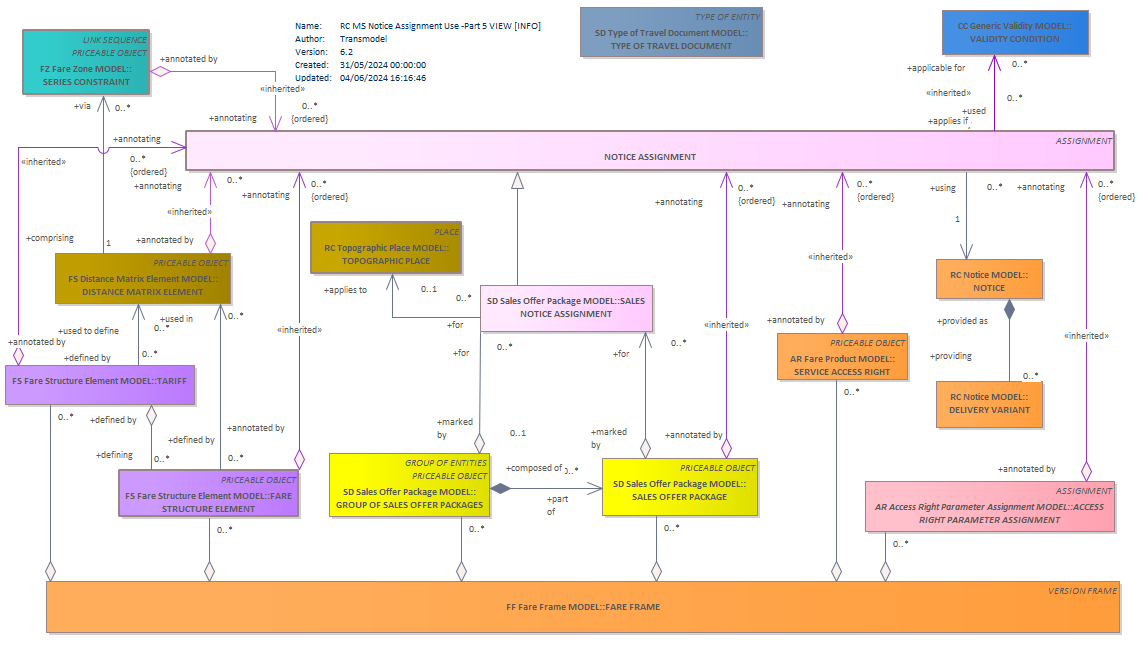

Diagram RC MS Notice Assignment Use -Part 5 VIEW [INFO] ACCESS RIGHT PARAMETER ASSIGNMENTFARE STRUCTURE ELEMENTTARIFFFARE FRAMESERVICE ACCESS RIGHTTOPOGRAPHIC PLACEGROUP OF SALES OFFER PACKAGESTYPE OF TRAVEL DOCUMENTSALES OFFER PACKAGESALES NOTICE ASSIGNMENTDISTANCE MATRIX ELEMENTSERIES CONSTRAINTDELIVERY VARIANTNOTICEVALIDITY CONDITIONNOTICE ASSIGNMENT

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
DELIVERY VARIANT
DISTANCE MATRIX ELEMENT
FARE FRAME
FARE STRUCTURE ELEMENT
GROUP OF SALES OFFER PACKAGES
NOTICE
NOTICE ASSIGNMENT
SALES NOTICE ASSIGNMENT
SALES OFFER PACKAGE
SERIES CONSTRAINT
SERVICE ACCESS RIGHT
TARIFF
TOPOGRAPHIC PLACE
TYPE OF TRAVEL DOCUMENT
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
