Transmodel diagram

RC SP Deck Path HIERARCHY [INFO]

In package SP Deck Path MODELView on transmodel-cen.eu

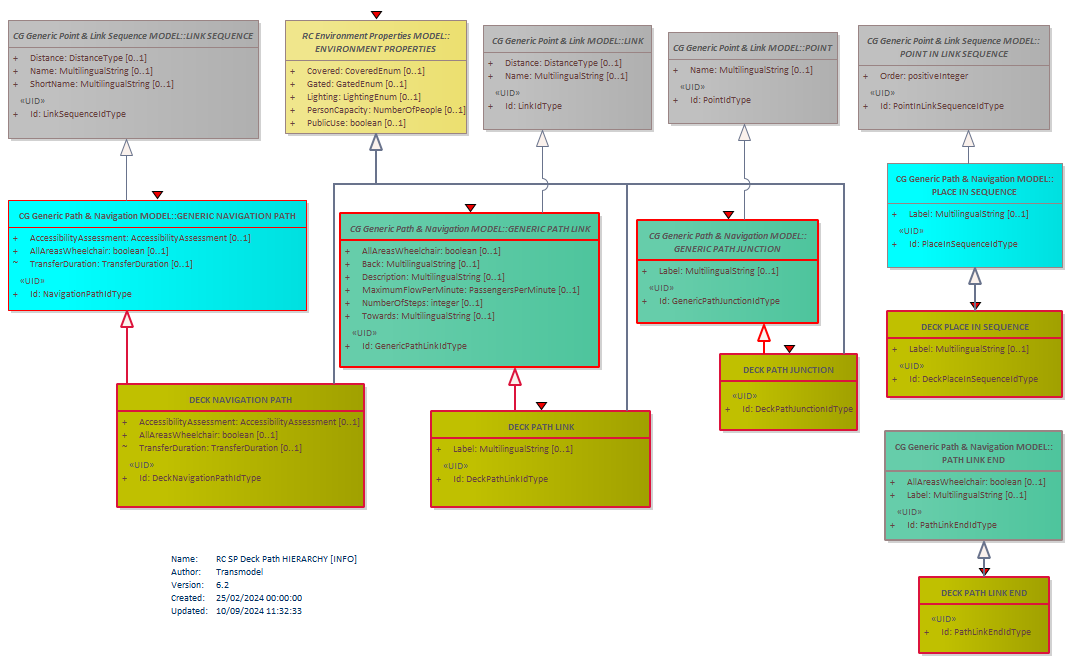

Diagram RC SP Deck Path HIERARCHY [INFO] PLACE IN SEQUENCEPOINT IN LINK SEQUENCEDECK PLACE IN SEQUENCEGENERIC PATH LINKGENERIC PATH JUNCTIONPATH LINK ENDLINK SEQUENCEGENERIC NAVIGATION PATHPOINTLINKDECK NAVIGATION PATHENVIRONMENT PROPERTIESDECK PATH JUNCTIONDECK PATH LINK ENDDECK PATH LINK

Classes on this diagram

DECK NAVIGATION PATH
DECK PATH JUNCTION
DECK PATH LINK
DECK PATH LINK END
DECK PLACE IN SEQUENCE
ENVIRONMENT PROPERTIES abstract
GENERIC NAVIGATION PATH
GENERIC PATH JUNCTION abstract
GENERIC PATH LINK abstract
LINK abstract
LINK SEQUENCE abstract
PATH LINK END
PLACE IN SEQUENCE
POINT abstract
POINT IN LINK SEQUENCE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
