Transmodel diagram

RC SP Deck Path MODEL

In package SP Deck Path MODELView on transmodel-cen.eu

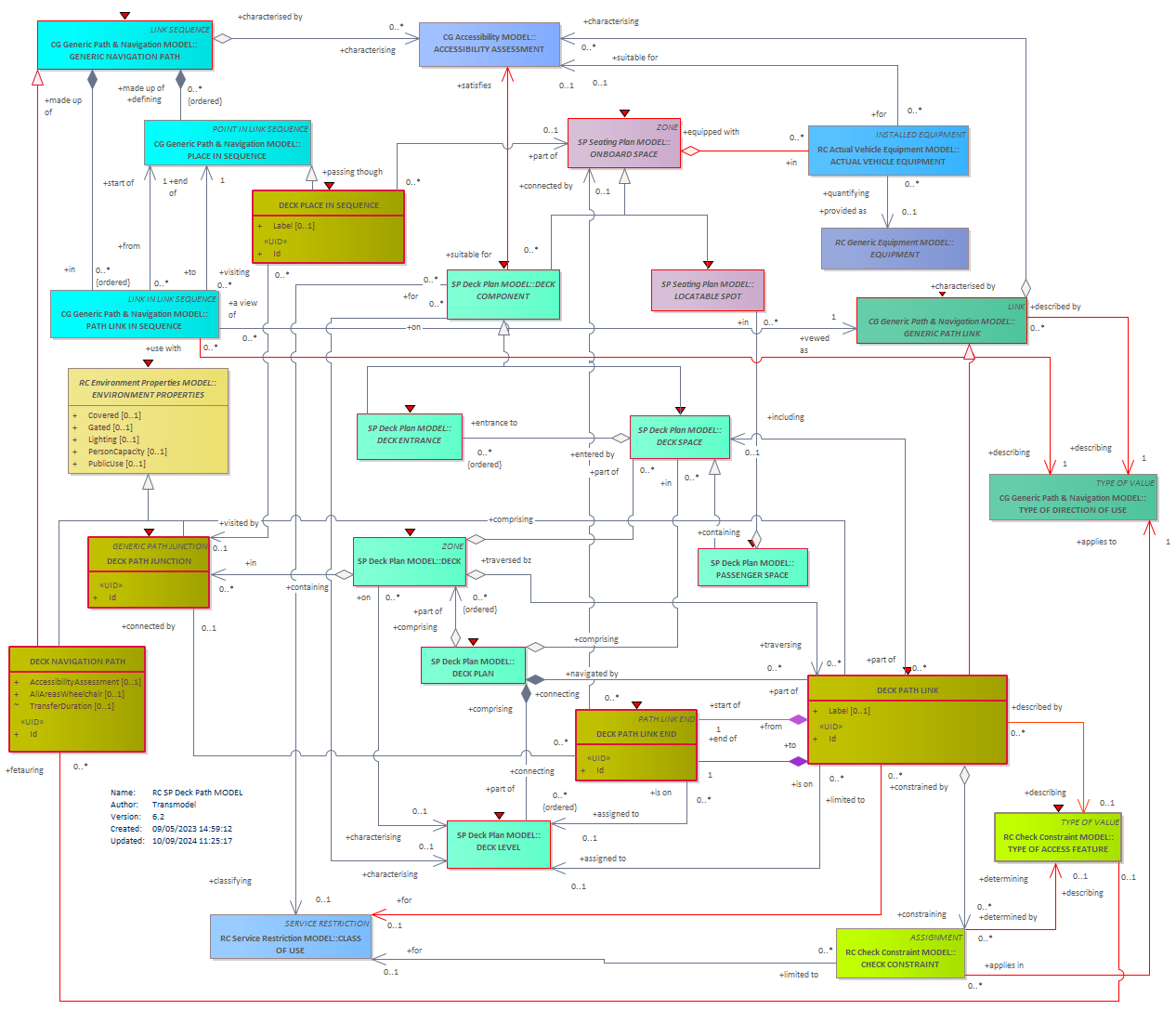

Diagram RC SP Deck Path MODEL TYPE OF DIRECTION OF USETYPE OF ACCESS FEATUREDECK PLACE IN SEQUENCEDECKDECK NAVIGATION PATHENVIRONMENT PROPERTIESDECK PATH JUNCTIONLOCATABLE SPOTACTUAL VEHICLE EQUIPMENTONBOARD SPACEDECK PATH LINK ENDDECK SPACEPASSENGER SPACEDECK LEVELDECK ENTRANCEDECK PLANDECK PATH LINKDECK COMPONENTCLASS OF USECHECK CONSTRAINTEQUIPMENTACCESSIBILITY ASSESSMENTGENERIC NAVIGATION PATHPATH LINK IN SEQUENCEPLACE IN SEQUENCEGENERIC PATH LINK

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
CHECK CONSTRAINT
CLASS OF USE
DECK
DECK COMPONENT abstract
DECK ENTRANCE abstract
DECK LEVEL
DECK NAVIGATION PATH
DECK PATH JUNCTION
DECK PATH LINK
DECK PATH LINK END
DECK PLACE IN SEQUENCE
DECK PLAN
DECK SPACE abstract
ENVIRONMENT PROPERTIES abstract
EQUIPMENT abstract
GENERIC NAVIGATION PATH
GENERIC PATH LINK abstract
LOCATABLE SPOT abstract
ONBOARD SPACE abstract
PASSENGER SPACE
PATH LINK IN SEQUENCE
PLACE IN SEQUENCE
TYPE OF ACCESS FEATURE
TYPE OF DIRECTION OF USE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
