Transmodel diagram

RC SP Seat Facility & Equipment MODEL

In package SP Seating Plan MODELView on transmodel-cen.eu

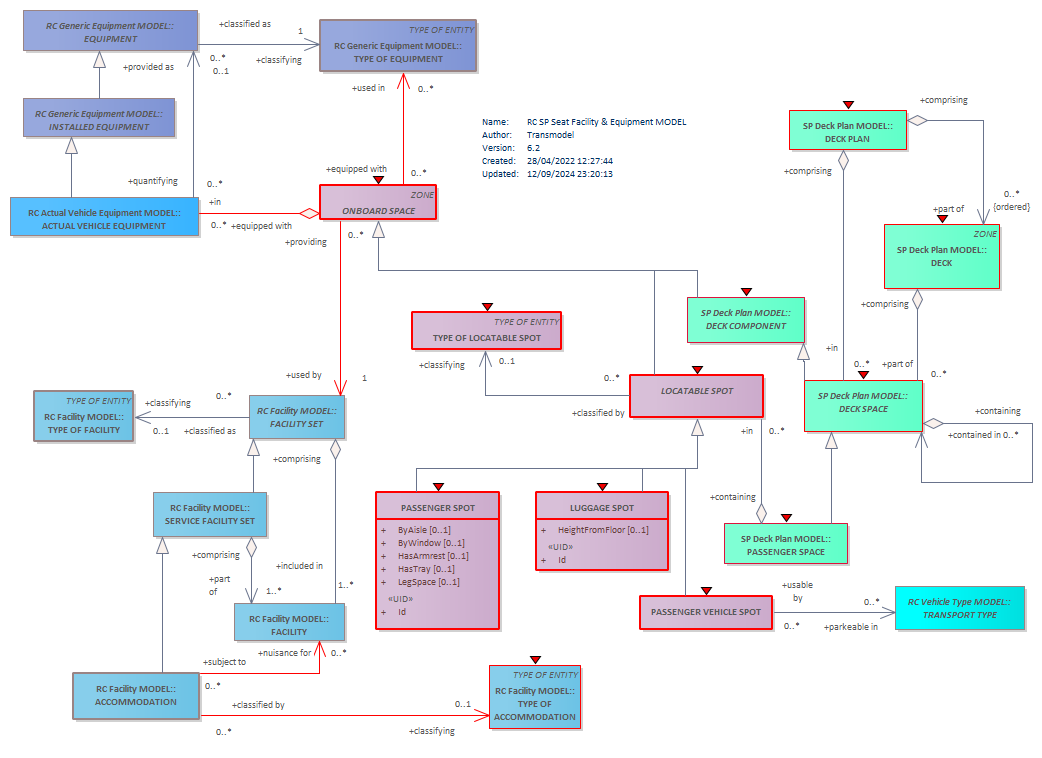

Diagram RC SP Seat Facility & Equipment MODEL ONBOARD SPACETYPE OF ACCOMMODATIONTRANSPORT TYPELUGGAGE SPOTLOCATABLE SPOTPASSENGER VEHICLE SPOTACCOMMODATIONSERVICE FACILITY SETACTUAL VEHICLE EQUIPMENTPASSENGER SPACETYPE OF LOCATABLE SPOTDECKTYPE OF EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTDECK COMPONENTTYPE OF FACILITYFACILITY SETFACILITYDECK SPACEDECK PLANPASSENGER SPOT

Classes on this diagram

ACCOMMODATION
ACTUAL VEHICLE EQUIPMENT
DECK
DECK COMPONENT abstract
DECK PLAN
DECK SPACE abstract
EQUIPMENT abstract
FACILITY
FACILITY SET abstract
INSTALLED EQUIPMENT abstract
LOCATABLE SPOT abstract
LUGGAGE SPOT
ONBOARD SPACE abstract
PASSENGER SPACE
PASSENGER SPOT
PASSENGER VEHICLE SPOT
SERVICE FACILITY SET
TRANSPORT TYPE abstract
TYPE OF ACCOMMODATION
TYPE OF EQUIPMENT
TYPE OF FACILITY
TYPE OF LOCATABLE SPOT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
