Transmodel diagram

RC SP Seating Plan HIERARCHY [INFO]

In package SP Seating Plan MODELView on transmodel-cen.eu

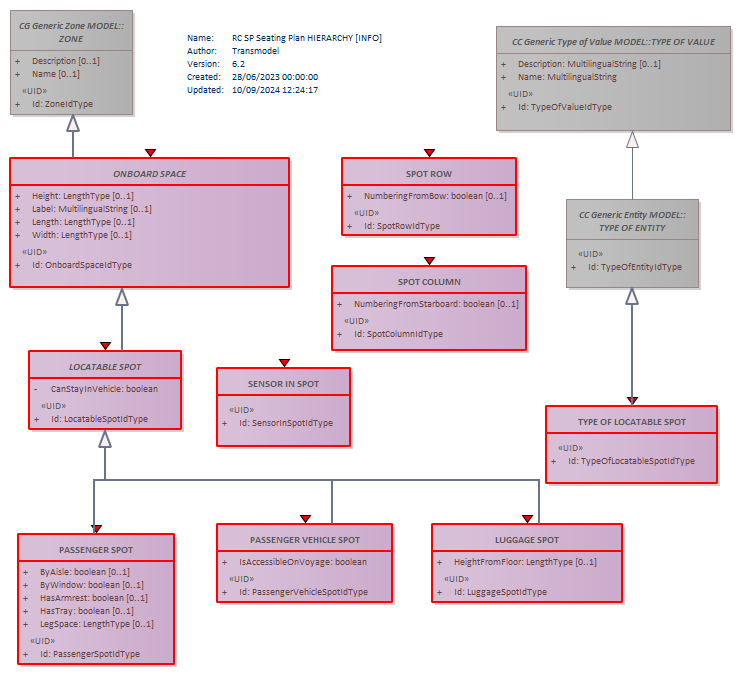

Diagram RC SP Seating Plan HIERARCHY [INFO] ZONETYPE OF VALUETYPE OF ENTITYSENSOR IN SPOTONBOARD SPACEPASSENGER VEHICLE SPOTLUGGAGE SPOTLOCATABLE SPOTTYPE OF LOCATABLE SPOTSPOT COLUMNSPOT ROWPASSENGER SPOT

Classes on this diagram

LOCATABLE SPOT abstract
LUGGAGE SPOT
ONBOARD SPACE abstract
PASSENGER SPOT
PASSENGER VEHICLE SPOT
SENSOR IN SPOT
SPOT COLUMN
SPOT ROW
TYPE OF ENTITY abstract
TYPE OF LOCATABLE SPOT
TYPE OF VALUE abstract
ZONE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
