Transmodel diagram

RC SP Seating Plan MODEL

In package SP Seating Plan MODELView on transmodel-cen.eu

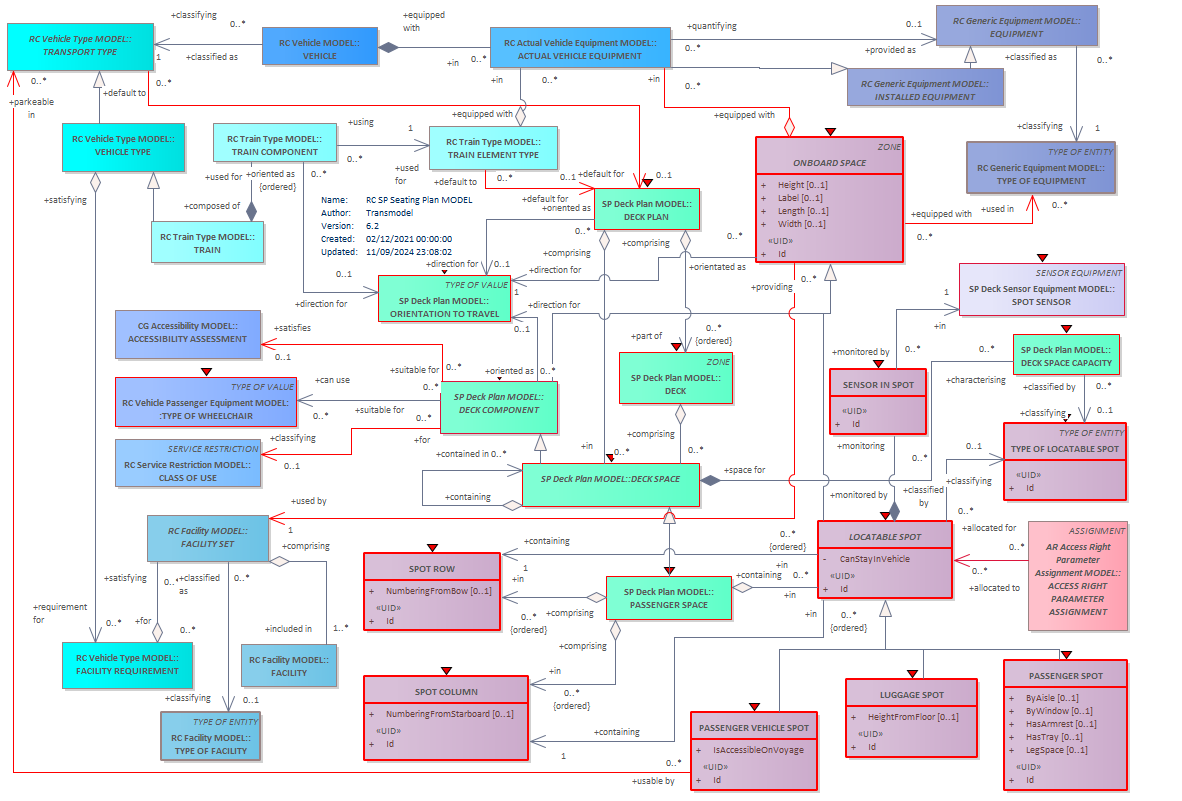

Diagram RC SP Seating Plan MODEL ORIENTATION TO TRAVELSPOT SENSORSENSOR IN SPOTONBOARD SPACEACCESS RIGHT PARAMETER ASSIGNMENTACCESSIBILITY ASSESSMENTPASSENGER VEHICLE SPOTLUGGAGE SPOTLOCATABLE SPOTTYPE OF LOCATABLE SPOTTYPE OF WHEELCHAIRDECK SPACE CAPACITYDECKSPOT COLUMNCLASS OF USESPOT ROWACTUAL VEHICLE EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTDECK COMPONENTVEHICLETRAINTRAIN ELEMENT TYPEVEHICLE TYPEFACILITY REQUIREMENTTYPE OF FACILITYTRANSPORT TYPEFACILITY SETFACILITYTRAIN COMPONENTDECK SPACEDECK PLANPASSENGER SPOTPASSENGER SPACE

Classes on this diagram

ACCESS RIGHT PARAMETER ASSIGNMENT abstract
ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
CLASS OF USE
DECK
DECK COMPONENT abstract
DECK PLAN
DECK SPACE abstract
DECK SPACE CAPACITY
EQUIPMENT abstract
FACILITY
FACILITY REQUIREMENT
FACILITY SET abstract
INSTALLED EQUIPMENT abstract
LOCATABLE SPOT abstract
LUGGAGE SPOT
ONBOARD SPACE abstract
ORIENTATION TO TRAVEL
PASSENGER SPACE
PASSENGER SPOT
PASSENGER VEHICLE SPOT
SENSOR IN SPOT
SPOT COLUMN
SPOT ROW
SPOT SENSOR
TRAIN
TRAIN COMPONENT
TRAIN ELEMENT TYPE
TRANSPORT TYPE abstract
TYPE OF EQUIPMENT
TYPE OF FACILITY
TYPE OF LOCATABLE SPOT
TYPE OF WHEELCHAIR
VEHICLE
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
