Transmodel diagram

RC SP Spot Equipment MODEL

In package SP Spot Equipment MODELView on transmodel-cen.eu

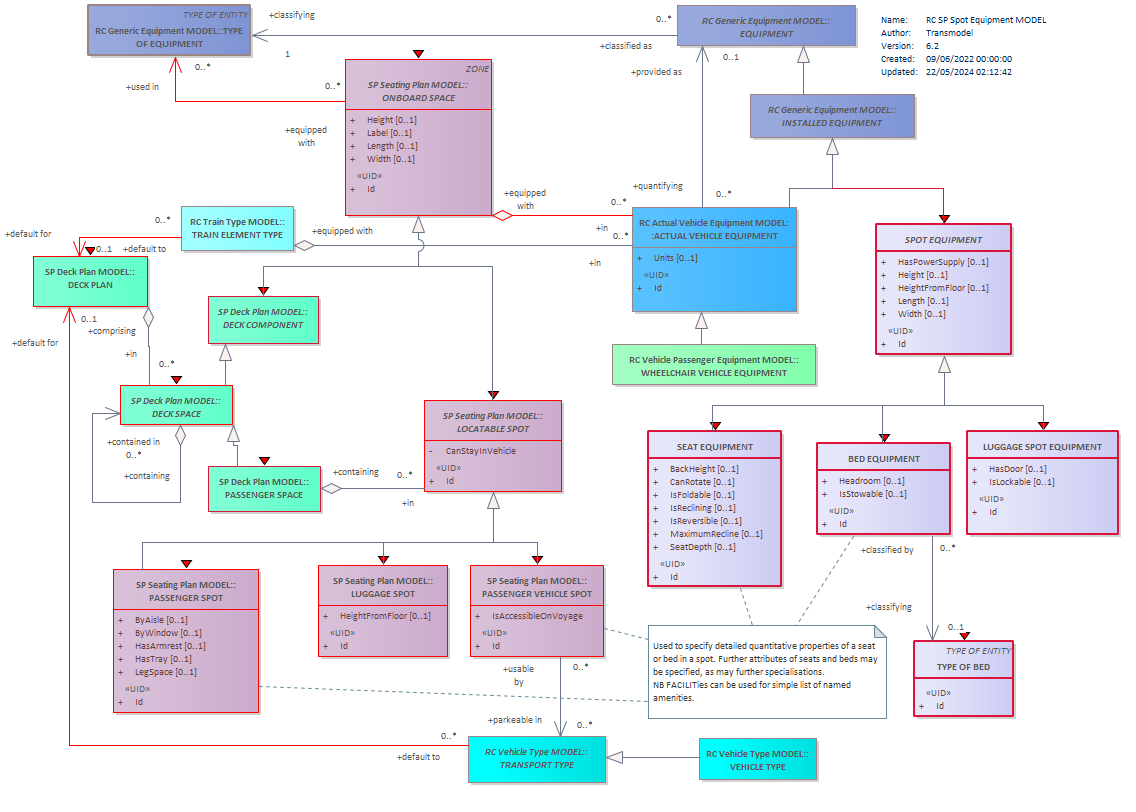

Diagram RC SP Spot Equipment MODEL TYPE OF BEDTRAIN ELEMENT TYPEONBOARD SPACEWHEELCHAIR VEHICLE EQUIPMENTVEHICLE TYPETRANSPORT TYPELUGGAGE SPOTLUGGAGE SPOT EQUIPMENTSEAT EQUIPMENTSPOT EQUIPMENTBED EQUIPMENTPASSENGER VEHICLE SPOTLOCATABLE SPOTDECK COMPONENTPASSENGER SPACEPASSENGER SPOTACTUAL VEHICLE EQUIPMENTTYPE OF EQUIPMENTINSTALLED EQUIPMENTEQUIPMENTDECK SPACEDECK PLAN

Classes on this diagram

ACTUAL VEHICLE EQUIPMENT
BED EQUIPMENT
DECK COMPONENT abstract
DECK PLAN
DECK SPACE abstract
EQUIPMENT abstract
INSTALLED EQUIPMENT abstract
LOCATABLE SPOT abstract
LUGGAGE SPOT
LUGGAGE SPOT EQUIPMENT
ONBOARD SPACE abstract
PASSENGER SPACE
PASSENGER SPOT
PASSENGER VEHICLE SPOT
SEAT EQUIPMENT
SPOT EQUIPMENT abstract
TRAIN ELEMENT TYPE
TRANSPORT TYPE abstract
TYPE OF BED
TYPE OF EQUIPMENT
VEHICLE TYPE
WHEELCHAIR VEHICLE EQUIPMENT
