Transmodel diagram

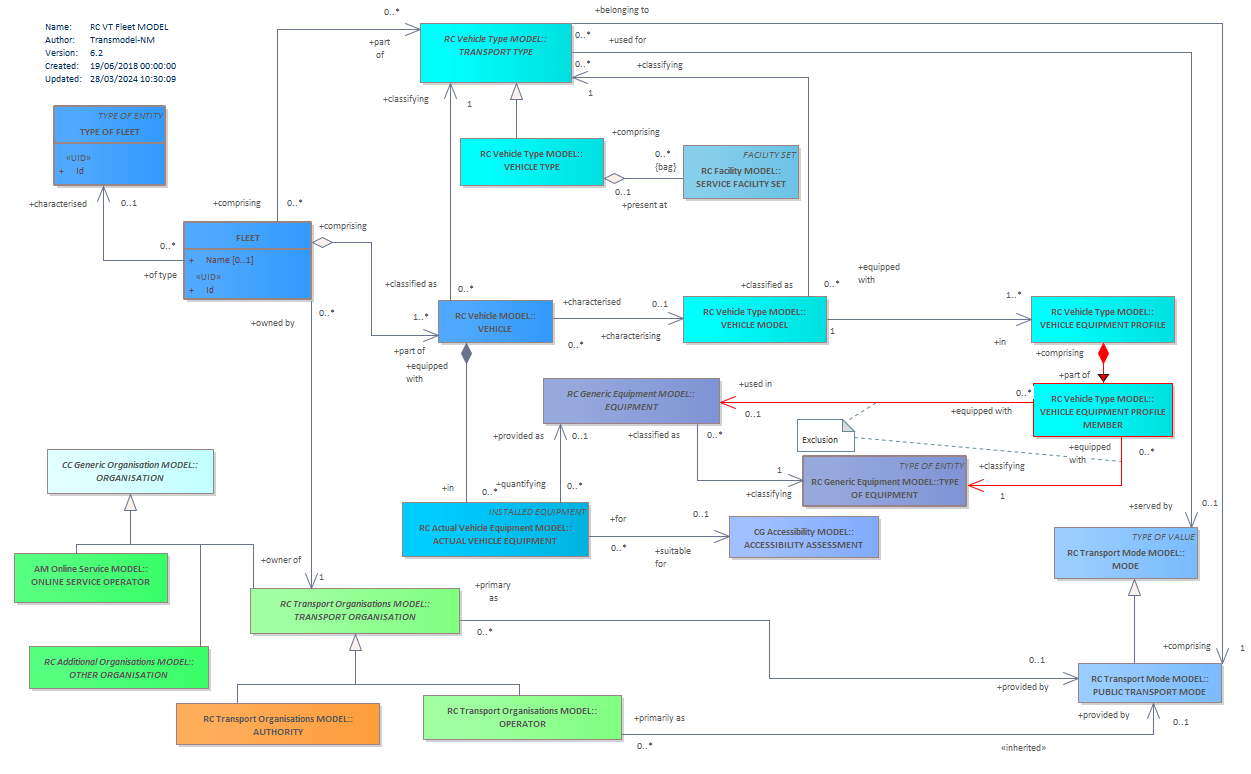

RC VT Fleet MODEL

In package RC Fleet MODELView on transmodel-cen.eu

Diagram RC VT Fleet MODEL EQUIPMENTVEHICLE EQUIPMENT PROFILE MEMBERVEHICLE TYPETRANSPORT ORGANISATIONTYPE OF FLEETONLINE SERVICE OPERATOROTHER ORGANISATIONAUTHORITYOPERATORORGANISATIONACCESSIBILITY ASSESSMENTTYPE OF EQUIPMENTVEHICLE MODELVEHICLE EQUIPMENT PROFILEACTUAL VEHICLE EQUIPMENTVEHICLESERVICE FACILITY SETTRANSPORT TYPEPUBLIC TRANSPORT MODEMODEFLEET

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
AUTHORITY
EQUIPMENT abstract
FLEET
MODE
ONLINE SERVICE OPERATOR
OPERATOR
ORGANISATION abstract
OTHER ORGANISATION abstract
PUBLIC TRANSPORT MODE
SERVICE FACILITY SET
TRANSPORT ORGANISATION abstract
TRANSPORT TYPE abstract
TYPE OF EQUIPMENT
TYPE OF FLEET
VEHICLE
VEHICLE EQUIPMENT PROFILE
VEHICLE EQUIPMENT PROFILE MEMBER
VEHICLE MODEL
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
