Transmodel diagram

RC VT Train Type HIERARCHY [INFO]

In package RC Train Type MODELView on transmodel-cen.eu

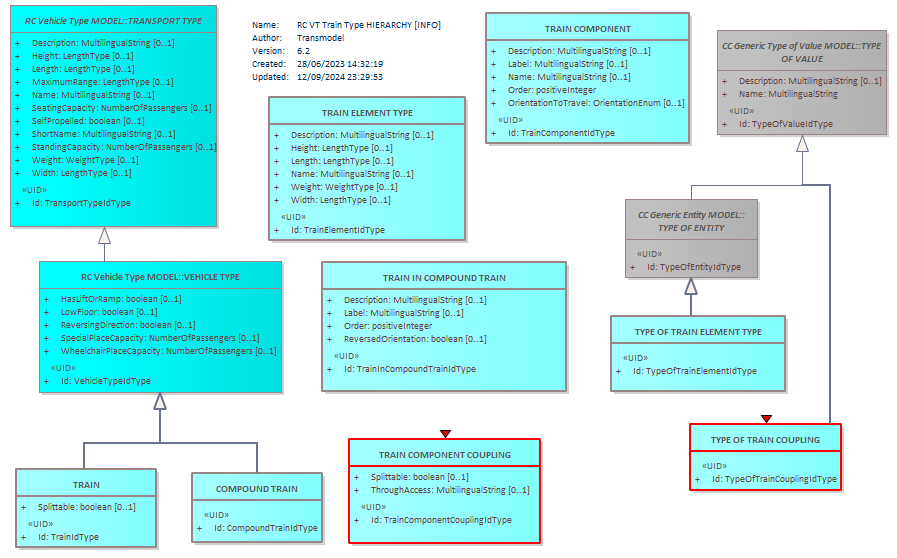

Diagram RC VT Train Type HIERARCHY [INFO] TYPE OF VALUETYPE OF ENTITYTRAIN COMPONENT COUPLINGTYPE OF TRAIN COUPLINGVEHICLE TYPECOMPOUND TRAINTRAIN IN COMPOUND TRAINTRANSPORT TYPETRAINTYPE OF TRAIN ELEMENT TYPETRAIN ELEMENT TYPETRAIN COMPONENT

Classes on this diagram

COMPOUND TRAIN
TRAIN
TRAIN COMPONENT
TRAIN COMPONENT COUPLING
TRAIN ELEMENT TYPE
TRAIN IN COMPOUND TRAIN
TRANSPORT TYPE abstract
TYPE OF ENTITY abstract
TYPE OF TRAIN COUPLING
TYPE OF TRAIN ELEMENT TYPE
TYPE OF VALUE abstract
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
