Transmodel diagram

RC VT Train Type MODEL

In package RC Train Type MODELView on transmodel-cen.eu

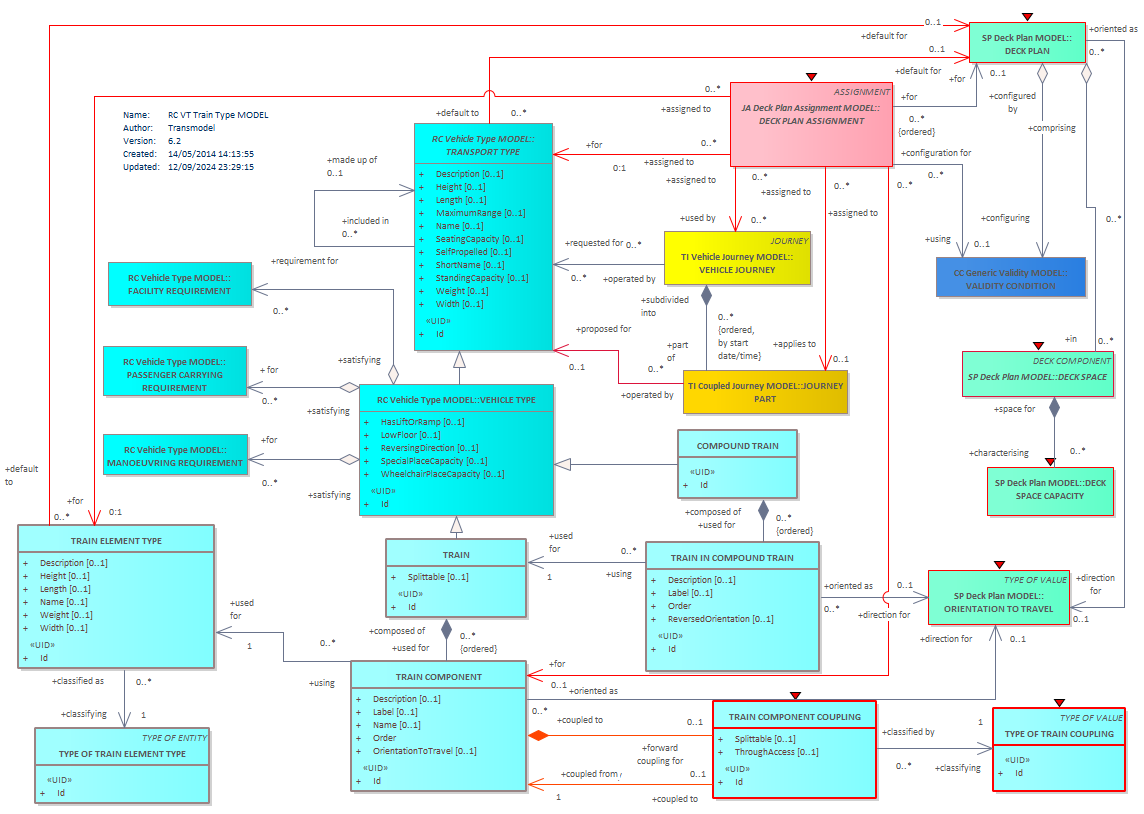

Diagram RC VT Train Type MODEL ORIENTATION TO TRAVELVALIDITY CONDITIONDECK SPACE CAPACITYDECK SPACEDECK PLAN ASSIGNMENTDECK PLANTRAIN COMPONENT COUPLINGJOURNEY PARTVEHICLE JOURNEYTYPE OF TRAIN COUPLINGVEHICLE TYPEFACILITY REQUIREMENTMANOEUVRING REQUIREMENTPASSENGER CARRYING REQUIREMENTCOMPOUND TRAINTRAIN IN COMPOUND TRAINTRANSPORT TYPETRAINTYPE OF TRAIN ELEMENT TYPETRAIN ELEMENT TYPETRAIN COMPONENT

Classes on this diagram

COMPOUND TRAIN
DECK PLAN
DECK PLAN ASSIGNMENT abstract
DECK SPACE abstract
DECK SPACE CAPACITY
FACILITY REQUIREMENT
JOURNEY PART
MANOEUVRING REQUIREMENT
ORIENTATION TO TRAVEL
PASSENGER CARRYING REQUIREMENT
TRAIN
TRAIN COMPONENT
TRAIN COMPONENT COUPLING
TRAIN ELEMENT TYPE
TRAIN IN COMPOUND TRAIN
TRANSPORT TYPE abstract
TYPE OF TRAIN COUPLING
TYPE OF TRAIN ELEMENT TYPE
VALIDITY CONDITION
VEHICLE JOURNEY
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
