Transmodel diagram

RC VT Vehicle MODEL

In package RC Vehicle MODELView on transmodel-cen.eu

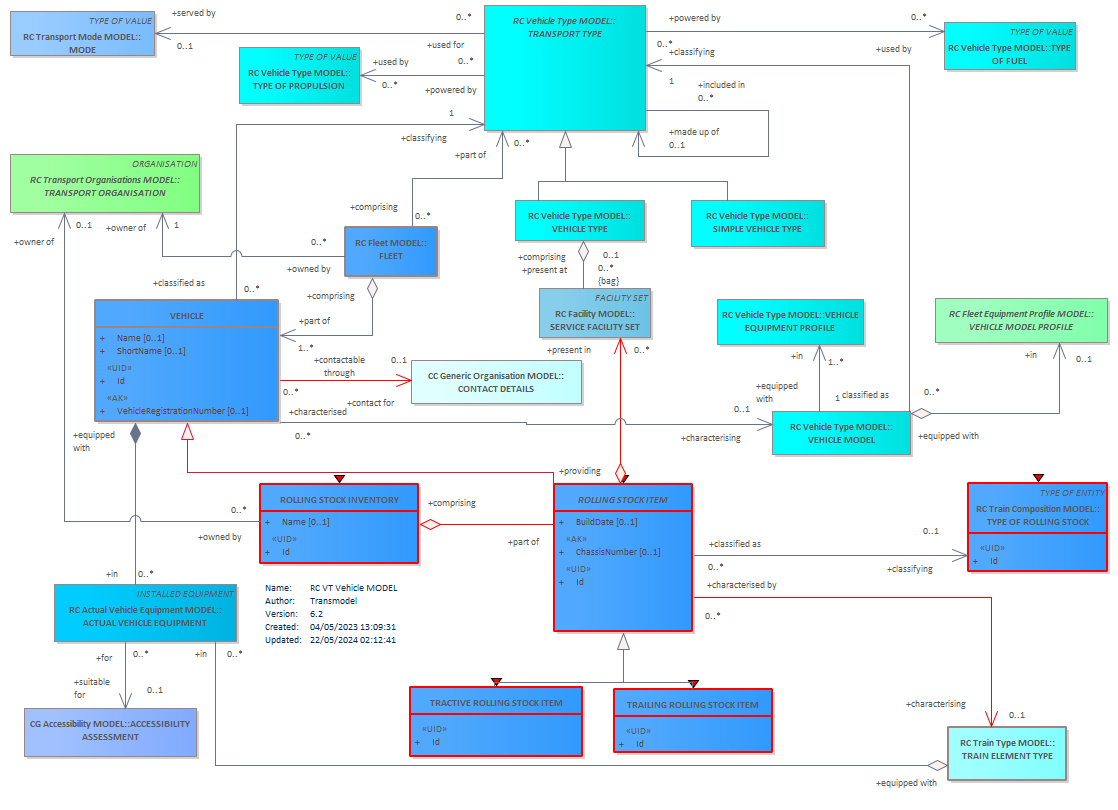

Diagram RC VT Vehicle MODEL TYPE OF ROLLING STOCKTRANSPORT ORGANISATIONTRAIN ELEMENT TYPETRAILING ROLLING STOCK ITEMTRACTIVE ROLLING STOCK ITEMROLLING STOCK INVENTORYROLLING STOCK ITEMFLEETCONTACT DETAILSTYPE OF PROPULSIONMODEVEHICLE MODEL PROFILETYPE OF FUELSIMPLE VEHICLE TYPEVEHICLE TYPESERVICE FACILITY SETACCESSIBILITY ASSESSMENTTRANSPORT TYPEVEHICLE MODELVEHICLE EQUIPMENT PROFILEACTUAL VEHICLE EQUIPMENTVEHICLE

Classes on this diagram

ACCESSIBILITY ASSESSMENT
ACTUAL VEHICLE EQUIPMENT
CONTACT DETAILS
FLEET
MODE
ROLLING STOCK INVENTORY
ROLLING STOCK ITEM abstract
SERVICE FACILITY SET
SIMPLE VEHICLE TYPE
TRACTIVE ROLLING STOCK ITEM
TRAILING ROLLING STOCK ITEM
TRAIN ELEMENT TYPE
TRANSPORT ORGANISATION abstract
TRANSPORT TYPE abstract
TYPE OF FUEL
TYPE OF PROPULSION
TYPE OF ROLLING STOCK
VEHICLE
VEHICLE EQUIPMENT PROFILE
VEHICLE MODEL
VEHICLE MODEL PROFILE abstract
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
