Transmodel diagram

TI JT Time Demand Times HIERARCHY [INFO]

In package JT Time Demand Times MODELView on transmodel-cen.eu

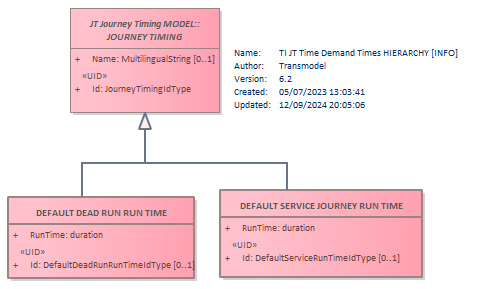

Diagram TI JT Time Demand Times HIERARCHY [INFO] JOURNEY TIMINGDEFAULT DEAD RUN RUN TIMEDEFAULT SERVICE JOURNEY RUN TIME

Classes on this diagram

DEFAULT DEAD RUN RUN TIME
DEFAULT SERVICE JOURNEY RUN TIME
JOURNEY TIMING abstract
