Transmodel diagram

TI JT Vehicle Journey Times HIERARCHY [INFO]

In package JT Vehicle Journey Times MODELView on transmodel-cen.eu

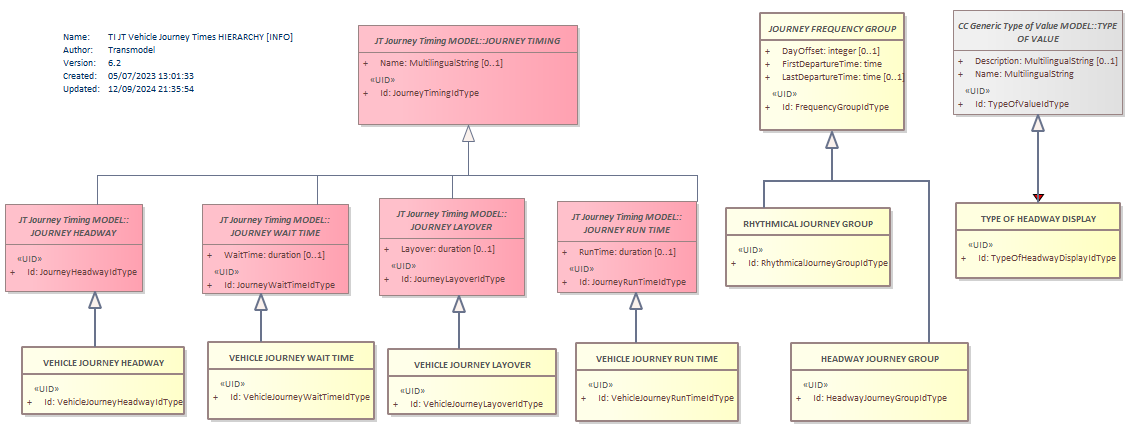

Diagram TI JT Vehicle Journey Times HIERARCHY [INFO] TYPE OF HEADWAY DISPLAYTYPE OF VALUERHYTHMICAL JOURNEY GROUPJOURNEY FREQUENCY GROUPHEADWAY JOURNEY GROUPJOURNEY RUN TIMEJOURNEY HEADWAYJOURNEY WAIT TIMEJOURNEY LAYOVERJOURNEY TIMINGVEHICLE JOURNEY HEADWAYVEHICLE JOURNEY RUN TIMEVEHICLE JOURNEY LAYOVERVEHICLE JOURNEY WAIT TIME

Classes on this diagram

HEADWAY JOURNEY GROUP
JOURNEY FREQUENCY GROUP abstract
JOURNEY HEADWAY abstract
JOURNEY LAYOVER abstract
JOURNEY RUN TIME abstract
JOURNEY TIMING abstract
JOURNEY WAIT TIME abstract
RHYTHMICAL JOURNEY GROUP
TYPE OF HEADWAY DISPLAY
TYPE OF VALUE abstract
VEHICLE JOURNEY HEADWAY
VEHICLE JOURNEY LAYOVER
VEHICLE JOURNEY RUN TIME
VEHICLE JOURNEY WAIT TIME

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
