Transmodel diagram

TI VC Vehicle Recharging Plan MODEL

In package VC Vehicle Recharging Plan MODELView on transmodel-cen.eu

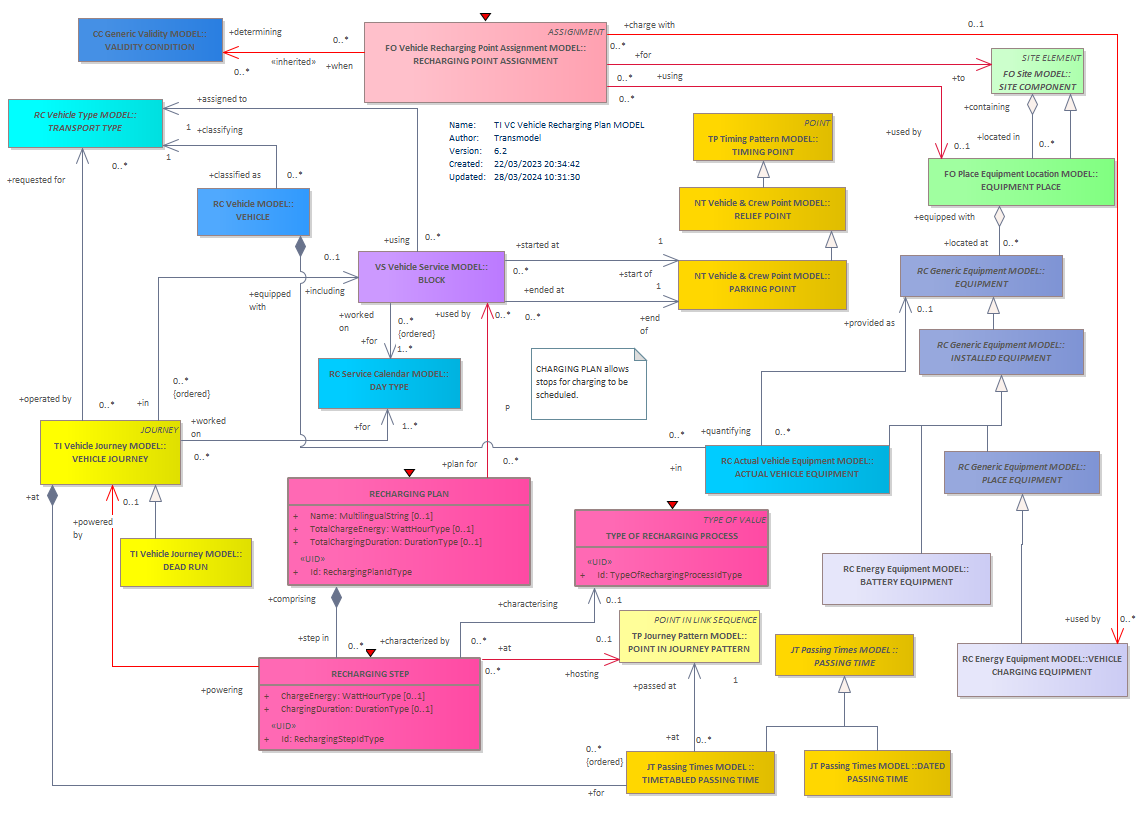

Diagram TI VC Vehicle Recharging Plan MODEL TYPE OF RECHARGING PROCESSPLACE EQUIPMENTVALIDITY CONDITIONTIMETABLED PASSING TIMEPASSING TIMEDATED PASSING TIMEPOINT IN JOURNEY PATTERNVEHICLE CHARGING EQUIPMENTRECHARGING POINT ASSIGNMENTBATTERY EQUIPMENTACTUAL VEHICLE EQUIPMENTINSTALLED EQUIPMENTSITE COMPONENTEQUIPMENT PLACEEQUIPMENTTIMING POINTDEAD RUNVEHICLERELIEF POINTPARKING POINTTRANSPORT TYPEBLOCKDAY TYPEVEHICLE JOURNEYRECHARGING PLANRECHARGING STEP

Classes on this diagram

ACTUAL VEHICLE EQUIPMENT
BATTERY EQUIPMENT
BLOCK
DATED PASSING TIME
DAY TYPE
DEAD RUN
EQUIPMENT abstract
EQUIPMENT PLACE
INSTALLED EQUIPMENT abstract
PARKING POINT
PASSING TIME abstract
PLACE EQUIPMENT abstract
POINT IN JOURNEY PATTERN
RECHARGING PLAN
RECHARGING POINT ASSIGNMENT
RECHARGING STEP
RELIEF POINT
SITE COMPONENT abstract
TIMETABLED PASSING TIME
TIMING POINT
TRANSPORT TYPE abstract
TYPE OF RECHARGING PROCESS
VALIDITY CONDITION
VEHICLE
VEHICLE CHARGING EQUIPMENT
VEHICLE JOURNEY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
