Transmodel diagram

TI VJ Journey DESCENDANTS [INFO]

In package TI Vehicle Journey MODELView on transmodel-cen.eu

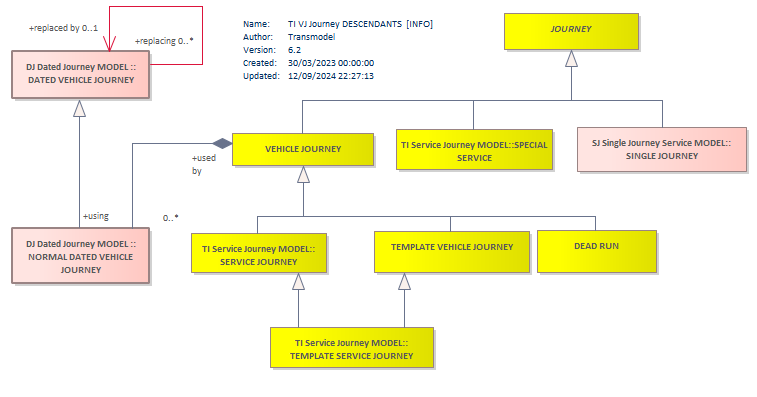

Diagram TI VJ Journey DESCENDANTS [INFO] NORMAL DATED VEHICLE JOURNEYDATED VEHICLE JOURNEYTEMPLATE SERVICE JOURNEYTEMPLATE VEHICLE JOURNEYSINGLE JOURNEYSPECIAL SERVICEJOURNEYSERVICE JOURNEYVEHICLE JOURNEYDEAD RUN

Classes on this diagram

DATED VEHICLE JOURNEY
DEAD RUN
JOURNEY abstract
NORMAL DATED VEHICLE JOURNEY
SERVICE JOURNEY
SINGLE JOURNEY
SPECIAL SERVICE
TEMPLATE SERVICE JOURNEY
TEMPLATE VEHICLE JOURNEY
VEHICLE JOURNEY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
