Transmodel diagram

TI VJ Journey HIERARCHY [INFO]

In package TI Vehicle Journey MODELView on transmodel-cen.eu

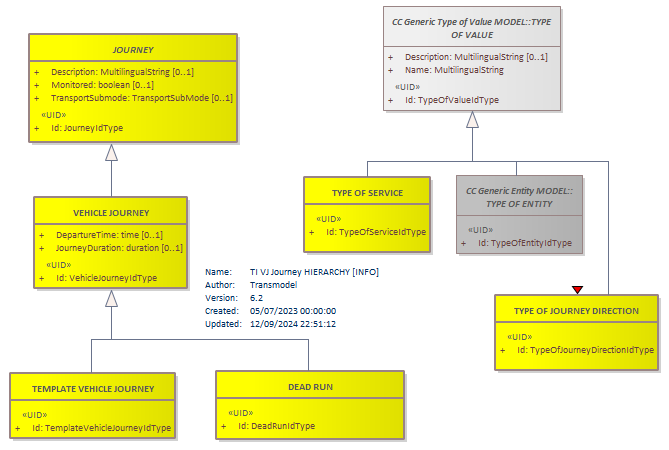

Diagram TI VJ Journey HIERARCHY [INFO] TYPE OF JOURNEY DIRECTIONTYPE OF ENTITYTYPE OF VALUETYPE OF SERVICETEMPLATE VEHICLE JOURNEYJOURNEYVEHICLE JOURNEYDEAD RUN

Classes on this diagram

DEAD RUN
JOURNEY abstract
TEMPLATE VEHICLE JOURNEY
TYPE OF ENTITY abstract
TYPE OF JOURNEY DIRECTION
TYPE OF SERVICE
TYPE OF VALUE abstract
VEHICLE JOURNEY

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
