Transmodel diagram

TI VS Train Coupling & Block VIEW

In package VS Vehicle Service MODELView on transmodel-cen.eu

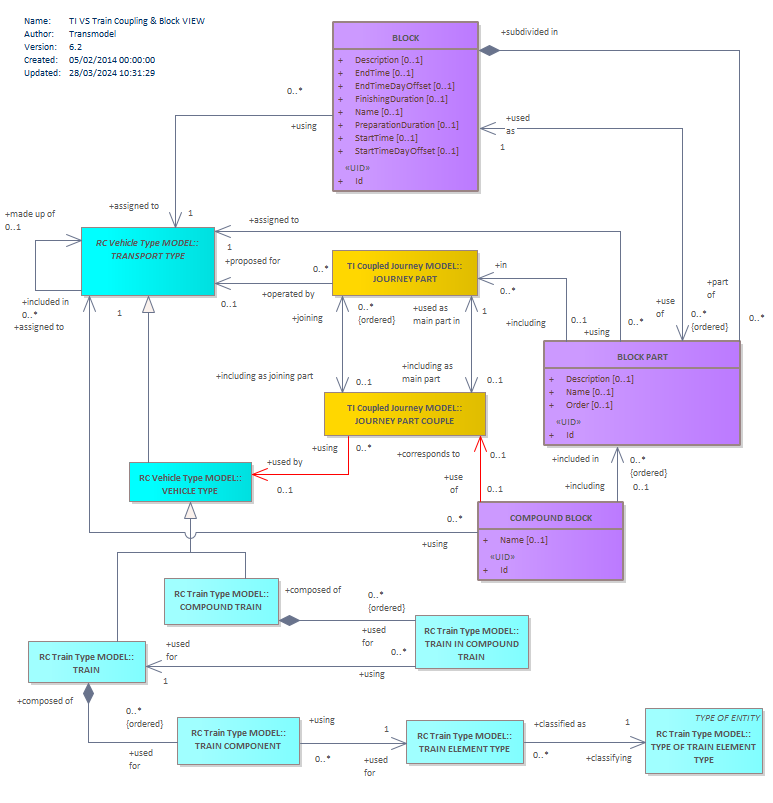

Diagram TI VS Train Coupling & Block VIEW JOURNEY PART COUPLEJOURNEY PARTVEHICLE TYPECOMPOUND TRAINTRAIN IN COMPOUND TRAINTRAINTYPE OF TRAIN ELEMENT TYPETRAIN ELEMENT TYPETRAIN COMPONENTTRANSPORT TYPEBLOCKBLOCK PARTCOMPOUND BLOCK

Classes on this diagram

BLOCK
BLOCK PART
COMPOUND BLOCK
COMPOUND TRAIN
JOURNEY PART
JOURNEY PART COUPLE
TRAIN
TRAIN COMPONENT
TRAIN ELEMENT TYPE
TRAIN IN COMPOUND TRAIN
TRANSPORT TYPE abstract
TYPE OF TRAIN ELEMENT TYPE
VEHICLE TYPE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
