Transmodel diagram

TM AC Generic Type of Value - Part 1 Core DESCENDENT HIERARCHY [INFO]

In package AC Type of Value DESCENDENT HIERARCHY [INFO]View on transmodel-cen.eu

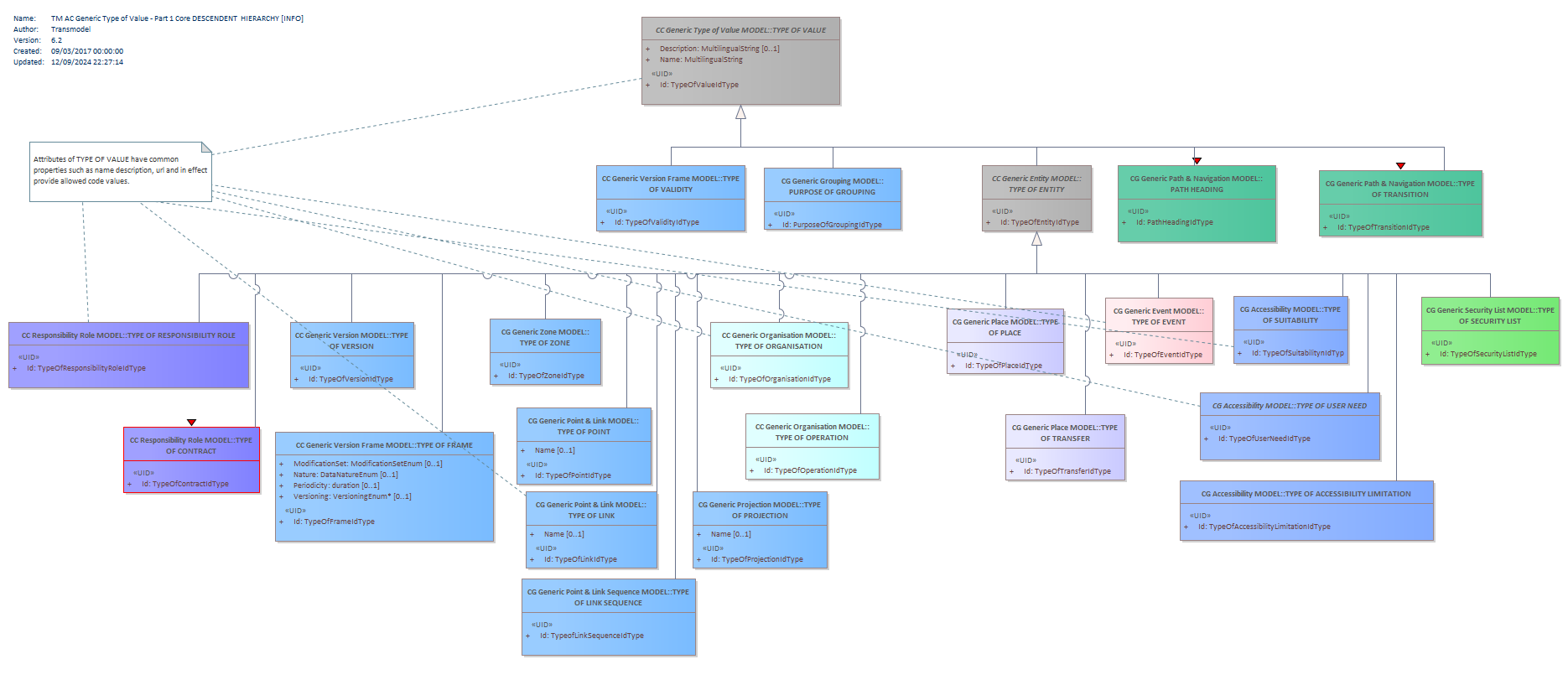

Diagram TM AC Generic Type of Value - Part 1 Core DESCENDENT HIERARCHY [INFO] TYPE OF TRANSITIONPATH HEADINGTYPE OF CONTRACTTYPE OF EVENTTYPE OF SUITABILITYTYPE OF ACCESSIBILITY LIMITATIONTYPE OF USER NEEDTYPE OF SECURITY LISTTYPE OF TRANSFERTYPE OF PLACETYPE OF PROJECTIONTYPE OF ZONETYPE OF LINK SEQUENCEPURPOSE OF GROUPINGTYPE OF OPERATIONTYPE OF ORGANISATIONTYPE OF RESPONSIBILITY ROLETYPE OF FRAMETYPE OF VALIDITYTYPE OF VERSIONTYPE OF POINTTYPE OF LINKTYPE OF ENTITYTYPE OF VALUE

Classes on this diagram

PATH HEADING
PURPOSE OF GROUPING
TYPE OF ACCESSIBILITY LIMITATION
TYPE OF CONTRACT
TYPE OF ENTITY abstract
TYPE OF EVENT
TYPE OF FRAME
TYPE OF LINK
TYPE OF LINK SEQUENCE
TYPE OF OPERATION
TYPE OF ORGANISATION
TYPE OF PLACE
TYPE OF POINT
TYPE OF PROJECTION
TYPE OF RESPONSIBILITY ROLE
TYPE OF SECURITY LIST
TYPE OF SUITABILITY
TYPE OF TRANSFER
TYPE OF TRANSITION
TYPE OF USER NEED abstract
TYPE OF VALIDITY
TYPE OF VALUE abstract
TYPE OF VERSION
TYPE OF ZONE
