Transmodel diagram

TM AC Generic Type of Value - Part 2 ND DESCENDENT HIERARCHY [INFO]

In package AC Type of Value DESCENDENT HIERARCHY [INFO]View on transmodel-cen.eu

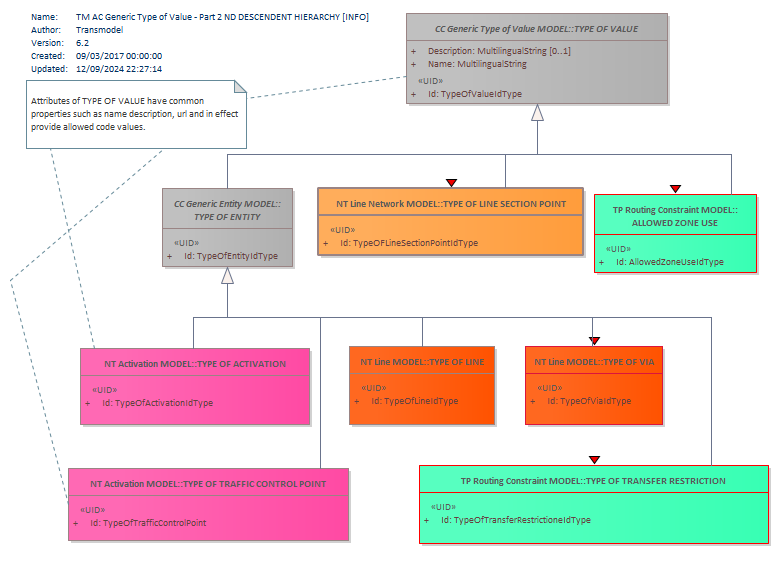

Diagram TM AC Generic Type of Value - Part 2 ND DESCENDENT HIERARCHY [INFO] ALLOWED ZONE USETYPE OF TRANSFER RESTRICTIONTYPE OF VIATYPE OF LINE SECTION POINTTYPE OF TRAFFIC CONTROL POINTTYPE OF ACTIVATIONTYPE OF LINETYPE OF ENTITYTYPE OF VALUE

Classes on this diagram

ALLOWED ZONE USE
TYPE OF ACTIVATION
TYPE OF ENTITY abstract
TYPE OF LINE
TYPE OF LINE SECTION POINT
TYPE OF TRAFFIC CONTROL POINT
TYPE OF TRANSFER RESTRICTION
TYPE OF VALUE abstract
TYPE OF VIA

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
