Transmodel diagram

TM AC Generic Type of Value - Part 3 TI DESCENDENT HIERARCHY [INFO]

In package AC Type of Value DESCENDENT HIERARCHY [INFO]View on transmodel-cen.eu

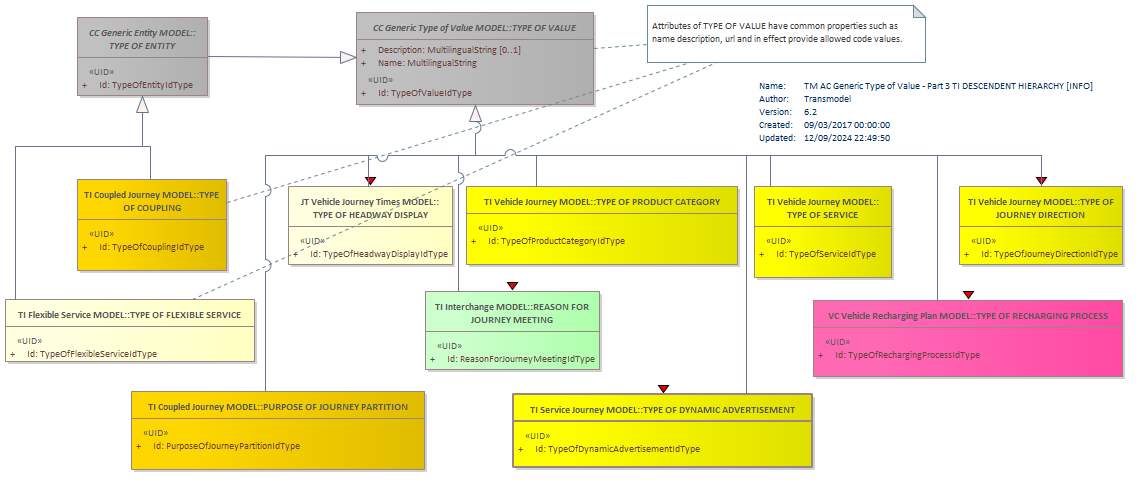

Diagram TM AC Generic Type of Value - Part 3 TI DESCENDENT HIERARCHY [INFO] TYPE OF DYNAMIC ADVERTISEMENTTYPE OF JOURNEY DIRECTIONREASON FOR JOURNEY MEETINGTYPE OF HEADWAY DISPLAYPURPOSE OF JOURNEY PARTITIONTYPE OF RECHARGING PROCESSTYPE OF FLEXIBLE SERVICETYPE OF COUPLINGTYPE OF PRODUCT CATEGORYTYPE OF SERVICETYPE OF ENTITYTYPE OF VALUE

Classes on this diagram

PURPOSE OF JOURNEY PARTITION
REASON FOR JOURNEY MEETING
TYPE OF COUPLING
TYPE OF DYNAMIC ADVERTISEMENT
TYPE OF ENTITY abstract
TYPE OF FLEXIBLE SERVICE
TYPE OF HEADWAY DISPLAY
TYPE OF JOURNEY DIRECTION
TYPE OF PRODUCT CATEGORY
TYPE OF RECHARGING PROCESS
TYPE OF SERVICE
TYPE OF VALUE abstract
