Transmodel diagram

TM AC Generic Type of Value - Part 7 DM DESCENDENT HIERARCHY [INFO]

In package AC Type of Value DESCENDENT HIERARCHY [INFO]View on transmodel-cen.eu

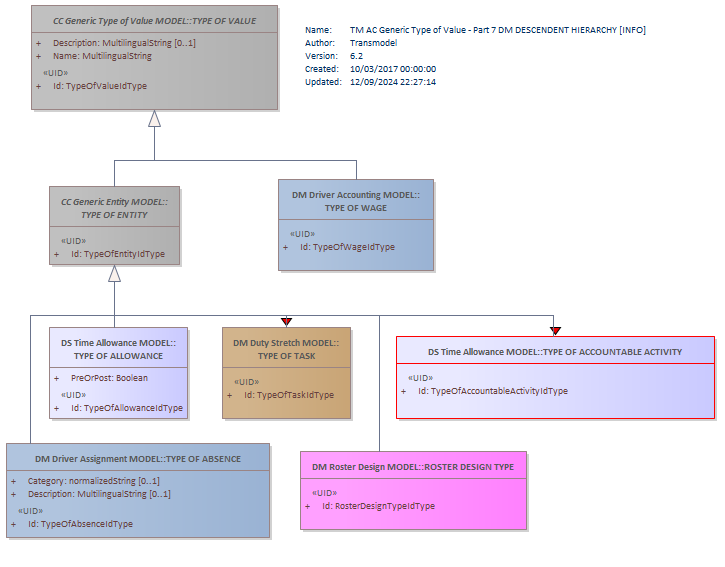

Diagram TM AC Generic Type of Value - Part 7 DM DESCENDENT HIERARCHY [INFO] TYPE OF ACCOUNTABLE ACTIVITYTYPE OF ALLOWANCETYPE OF TASKROSTER DESIGN TYPETYPE OF WAGETYPE OF ABSENCETYPE OF ENTITYTYPE OF VALUE

Classes on this diagram

ROSTER DESIGN TYPE
TYPE OF ABSENCE
TYPE OF ACCOUNTABLE ACTIVITY
TYPE OF ALLOWANCE
TYPE OF ENTITY abstract
TYPE OF TASK
TYPE OF VALUE abstract
TYPE OF WAGE
