Transmodel diagram

TM CC Responsibility Role MODEL

In package CC Responsibility Role MODELView on transmodel-cen.eu

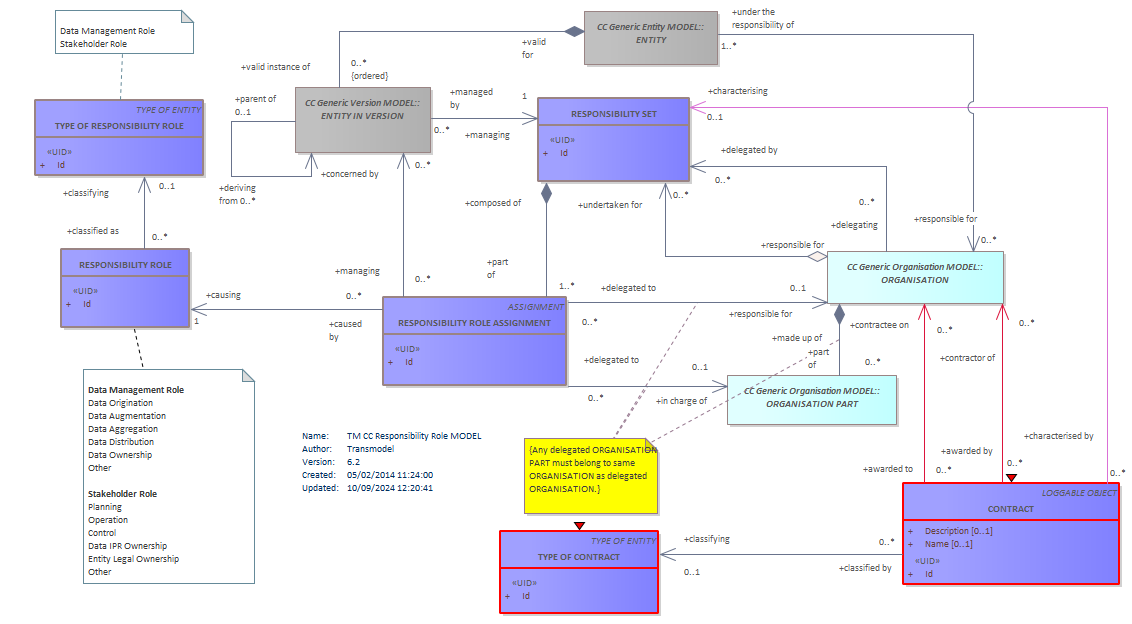

Diagram TM CC Responsibility Role MODEL TYPE OF CONTRACTCONTRACTTYPE OF RESPONSIBILITY ROLERESPONSIBILITY SETORGANISATION PARTENTITY IN VERSIONORGANISATIONRESPONSIBILITY ROLERESPONSIBILITY ROLE ASSIGNMENTENTITY

Classes on this diagram

CONTRACT
ENTITY abstract
ENTITY IN VERSION abstract
ORGANISATION abstract
ORGANISATION PART abstract
RESPONSIBILITY ROLE
RESPONSIBILITY ROLE ASSIGNMENT
RESPONSIBILITY SET
TYPE OF CONTRACT
TYPE OF RESPONSIBILITY ROLE

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
