Transmodel diagram

TM CG Generic Grouping MODEL

In package CG Generic Grouping MODELView on transmodel-cen.eu

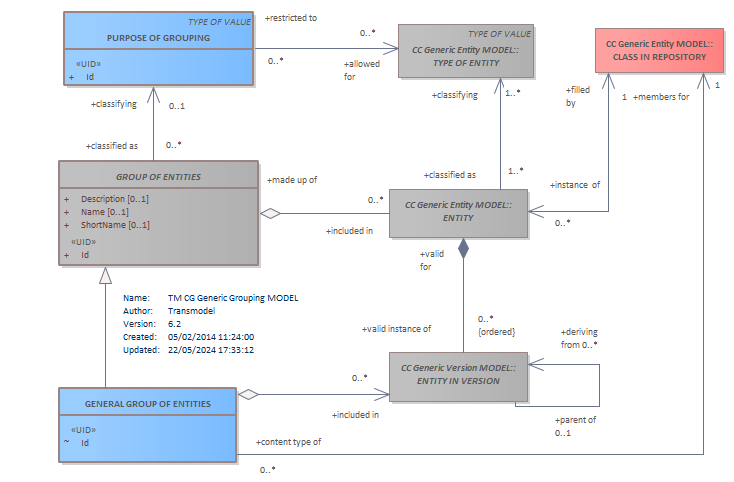

Diagram TM CG Generic Grouping MODEL GENERAL GROUP OF ENTITIESCLASS IN REPOSITORYENTITY IN VERSIONENTITYTYPE OF ENTITYGROUP OF ENTITIESPURPOSE OF GROUPING

Classes on this diagram

CLASS IN REPOSITORY
ENTITY abstract
ENTITY IN VERSION abstract
GENERAL GROUP OF ENTITIES
GROUP OF ENTITIES abstract
PURPOSE OF GROUPING
TYPE OF ENTITY abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
