Transmodel diagram

TM CG Generic Point & Link Sequence HIERARCHY [INFO]

In package CG Generic Point & Link Sequence MODELView on transmodel-cen.eu

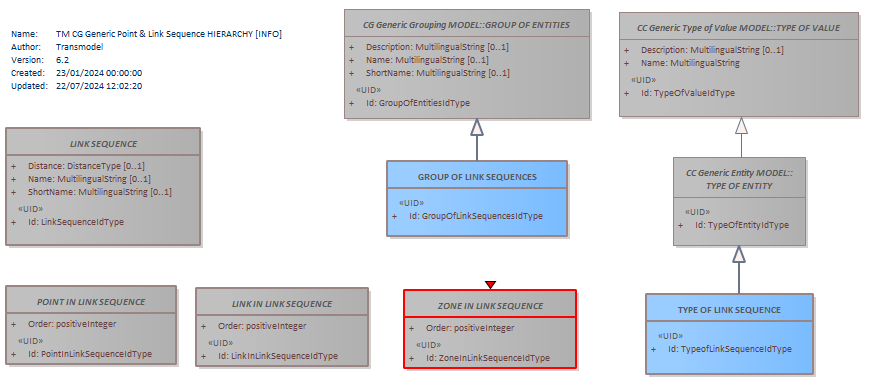

Diagram TM CG Generic Point & Link Sequence HIERARCHY [INFO] TYPE OF VALUETYPE OF ENTITYGROUP OF ENTITIESZONE IN LINK SEQUENCETYPE OF LINK SEQUENCEPOINT IN LINK SEQUENCELINK SEQUENCEGROUP OF LINK SEQUENCESLINK IN LINK SEQUENCE

Classes on this diagram

GROUP OF ENTITIES abstract
GROUP OF LINK SEQUENCES
LINK IN LINK SEQUENCE abstract
LINK SEQUENCE abstract
POINT IN LINK SEQUENCE abstract
TYPE OF ENTITY abstract
TYPE OF LINK SEQUENCE
TYPE OF VALUE abstract
ZONE IN LINK SEQUENCE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
