Transmodel diagram

TM CG Generic Point & Link Sequence MODEL

In package CG Generic Point & Link Sequence MODELView on transmodel-cen.eu

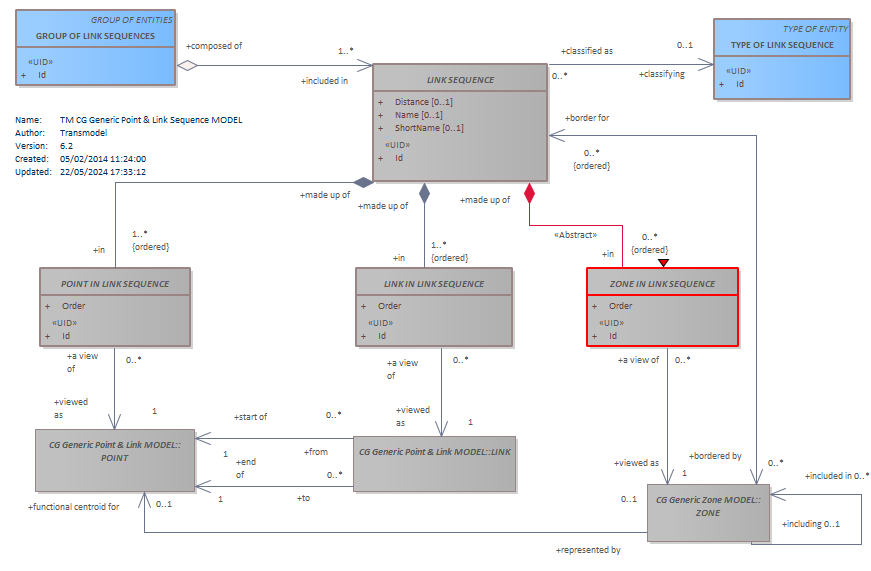

Diagram TM CG Generic Point & Link Sequence MODEL ZONEZONE IN LINK SEQUENCETYPE OF LINK SEQUENCEPOINT IN LINK SEQUENCEPOINTLINK SEQUENCELINKGROUP OF LINK SEQUENCESLINK IN LINK SEQUENCE

Classes on this diagram

GROUP OF LINK SEQUENCES
LINK abstract
LINK IN LINK SEQUENCE abstract
LINK SEQUENCE abstract
POINT abstract
POINT IN LINK SEQUENCE abstract
TYPE OF LINK SEQUENCE
ZONE abstract
ZONE IN LINK SEQUENCE abstract

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
