Transmodel diagram

TM RC Additional Organisation MODEL

In package RC Additional Organisations MODELView on transmodel-cen.eu

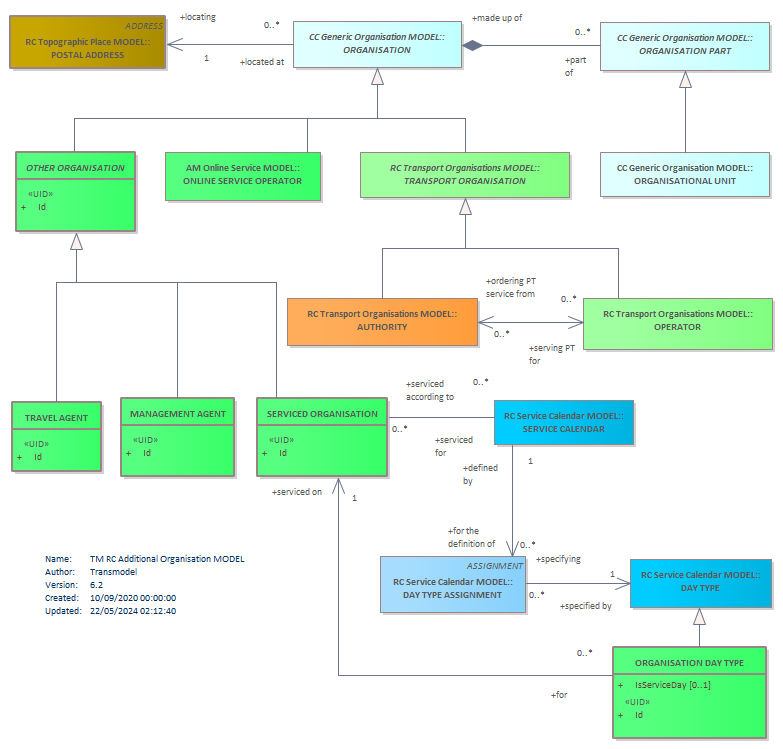

Diagram TM RC Additional Organisation MODEL ONLINE SERVICE OPERATORTRANSPORT ORGANISATIONDAY TYPE ASSIGNMENTSERVICE CALENDARDAY TYPEORGANISATION DAY TYPEPOSTAL ADDRESSAUTHORITYOPERATORORGANISATIONAL UNITORGANISATION PARTORGANISATIONSERVICED ORGANISATIONMANAGEMENT AGENTOTHER ORGANISATIONTRAVEL AGENT

Classes on this diagram

AUTHORITY
DAY TYPE
DAY TYPE ASSIGNMENT
MANAGEMENT AGENT
ONLINE SERVICE OPERATOR
OPERATOR
ORGANISATION abstract
ORGANISATION DAY TYPE
ORGANISATION PART abstract
ORGANISATIONAL UNIT
OTHER ORGANISATION abstract
POSTAL ADDRESS
SERVICE CALENDAR
SERVICED ORGANISATION
TRANSPORT ORGANISATION abstract
TRAVEL AGENT

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
