Transmodel diagram

TM RC AM Transport Organisation MODEL

In package RC Transport Organisations MODELView on transmodel-cen.eu

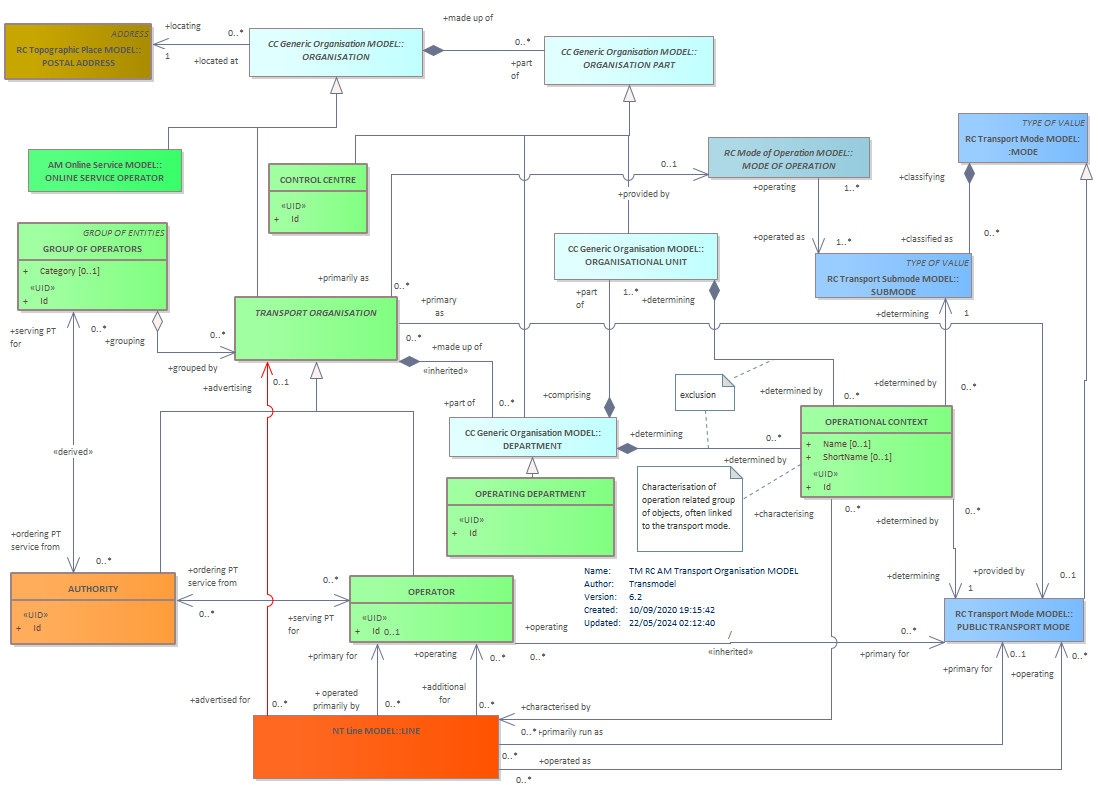

Diagram TM RC AM Transport Organisation MODEL LINEONLINE SERVICE OPERATORMODE OF OPERATIONMODETRANSPORT ORGANISATIONCONTROL CENTREPOSTAL ADDRESSPUBLIC TRANSPORT MODESUBMODEOPERATIONAL CONTEXTDEPARTMENTORGANISATIONAL UNITOPERATING DEPARTMENTORGANISATION PARTORGANISATIONAUTHORITYOPERATORGROUP OF OPERATORS

Classes on this diagram

AUTHORITY
CONTROL CENTRE
DEPARTMENT
GROUP OF OPERATORS
LINE
MODE
MODE OF OPERATION abstract
ONLINE SERVICE OPERATOR
OPERATING DEPARTMENT
OPERATIONAL CONTEXT
OPERATOR
ORGANISATION abstract
ORGANISATION PART abstract
ORGANISATIONAL UNIT
POSTAL ADDRESS
PUBLIC TRANSPORT MODE
SUBMODE
TRANSPORT ORGANISATION abstract
