Transmodel diagram

TM RC Availability Condition Use - Part2 INFO]

In package RC Availability Condition MODELView on transmodel-cen.eu

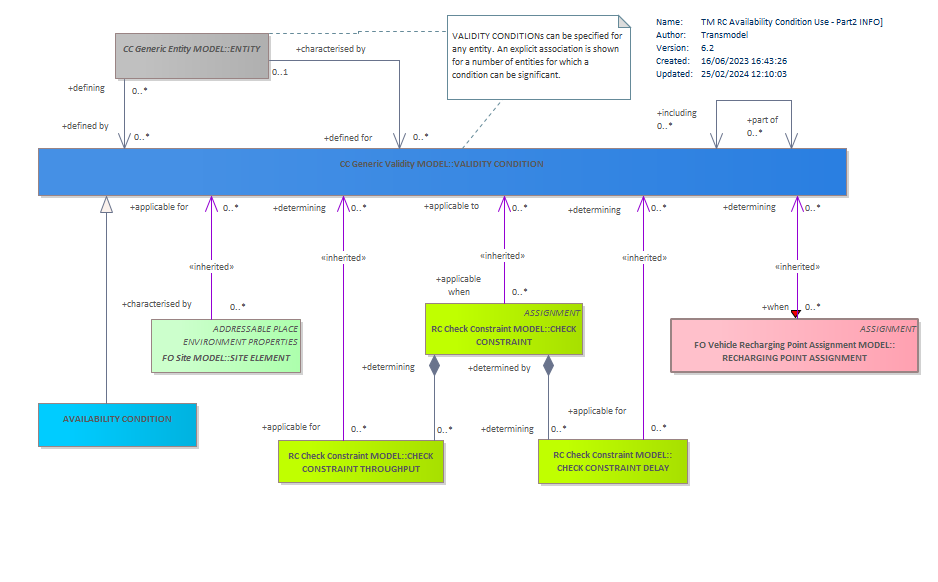

Diagram TM RC Availability Condition Use - Part2 INFO] RECHARGING POINT ASSIGNMENTCHECK CONSTRAINT DELAYCHECK CONSTRAINT THROUGHPUTCHECK CONSTRAINTSITE ELEMENTENTITYAVAILABILITY CONDITIONVALIDITY CONDITION

Classes on this diagram

AVAILABILITY CONDITION
CHECK CONSTRAINT
CHECK CONSTRAINT DELAY
CHECK CONSTRAINT THROUGHPUT
ENTITY abstract
RECHARGING POINT ASSIGNMENT
SITE ELEMENT abstract
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
