Transmodel diagram

TM RC Availability Condition Use - Part4 [INFO]

In package RC Availability Condition MODELView on transmodel-cen.eu

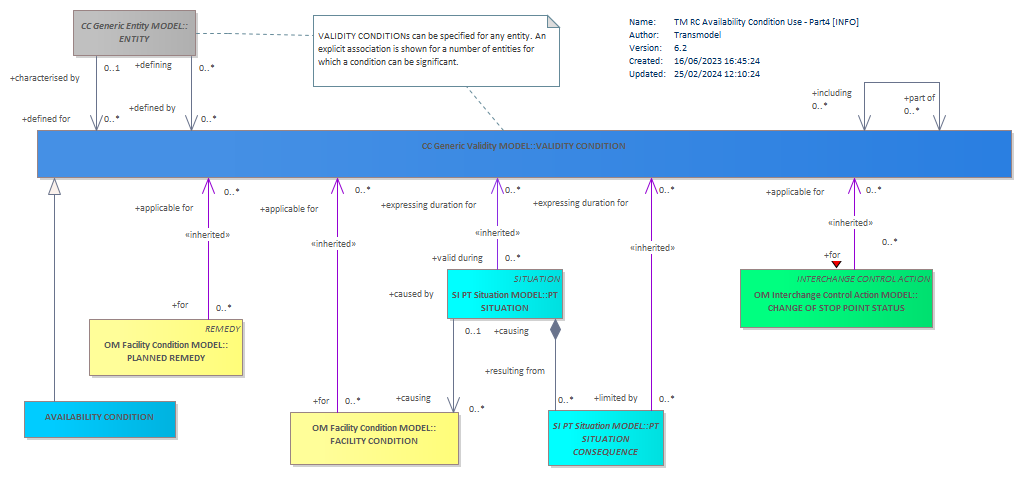

Diagram TM RC Availability Condition Use - Part4 [INFO] ENTITYCHANGE OF STOP POINT STATUSFACILITY CONDITIONPLANNED REMEDYPT SITUATIONPT SITUATION CONSEQUENCEAVAILABILITY CONDITIONVALIDITY CONDITION

Classes on this diagram

AVAILABILITY CONDITION
CHANGE OF STOP POINT STATUS
ENTITY abstract
FACILITY CONDITION
PLANNED REMEDY
PT SITUATION
PT SITUATION CONSEQUENCE abstract
VALIDITY CONDITION

From the Transmodel 6.2 UML model published by CEN. Names, definitions and relationships are taken unchanged from its Enterprise Architect export (read 2026-10-22). Diagrams are EA's own images from transmodel-cen.eu; the neighbourhood drawings on class pages are made with Graphviz.
